Product Description

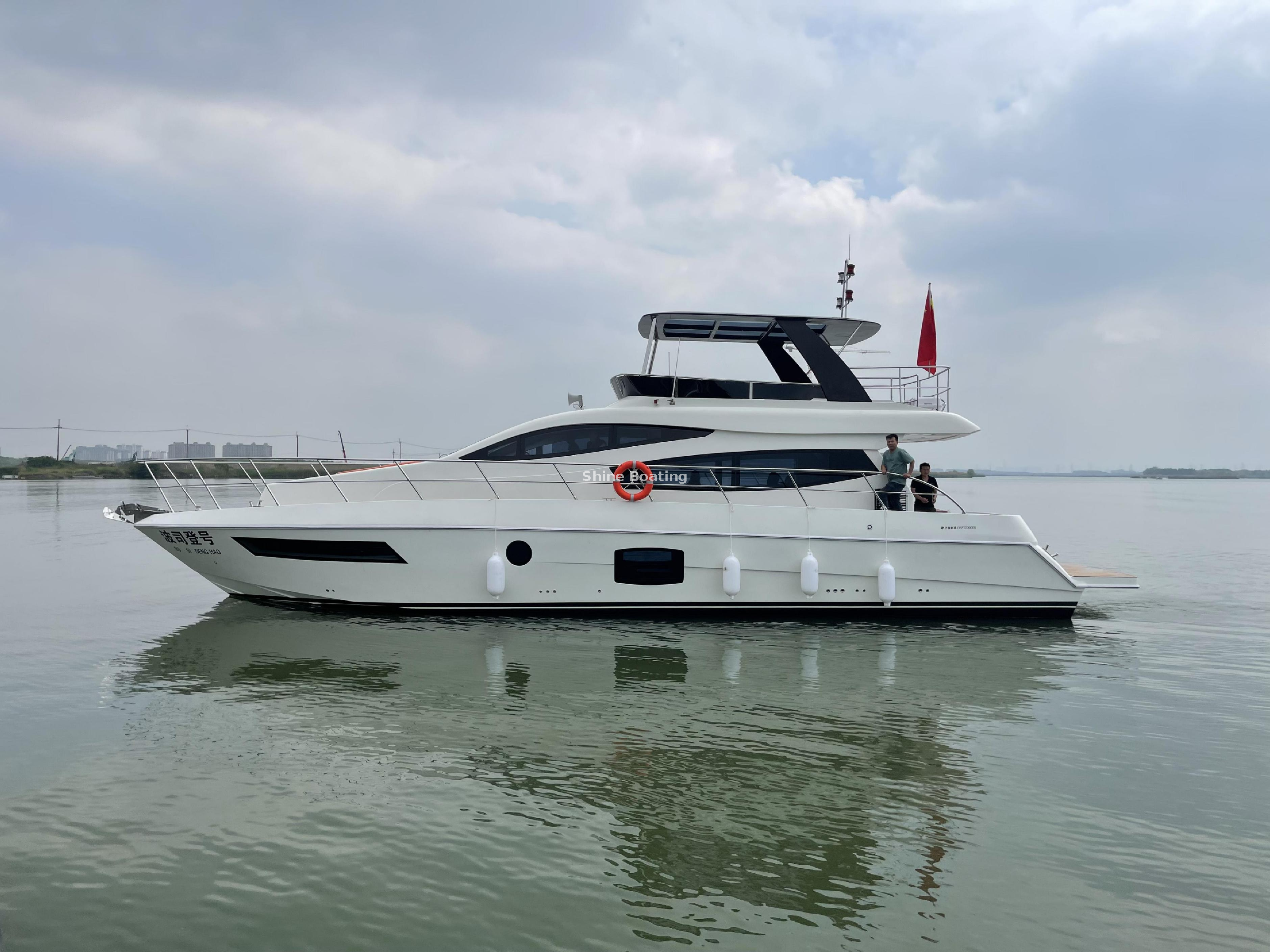

This 62ft luxury cruising yacht is professionally built for global high-end clients, yacht clubs, luxury resorts, charter operators and business reception. It integrates top‑grade materials, dual high‑power engines, deluxe entertainment interior, complete safety & navigation systems, making it the ultimate flagship watercraft for offshore leisure, business parties, and high‑end tourism projects.
*Built with Ashland gelcoat, Taishan high‑strength fiberglass, and Tianma marine‑grade resin for strong, seaworthy, and long‑lasting structure.
*Lightweight PU structural core and vacuum infusion process ensure stable hull, low displacement, and smooth sailing.

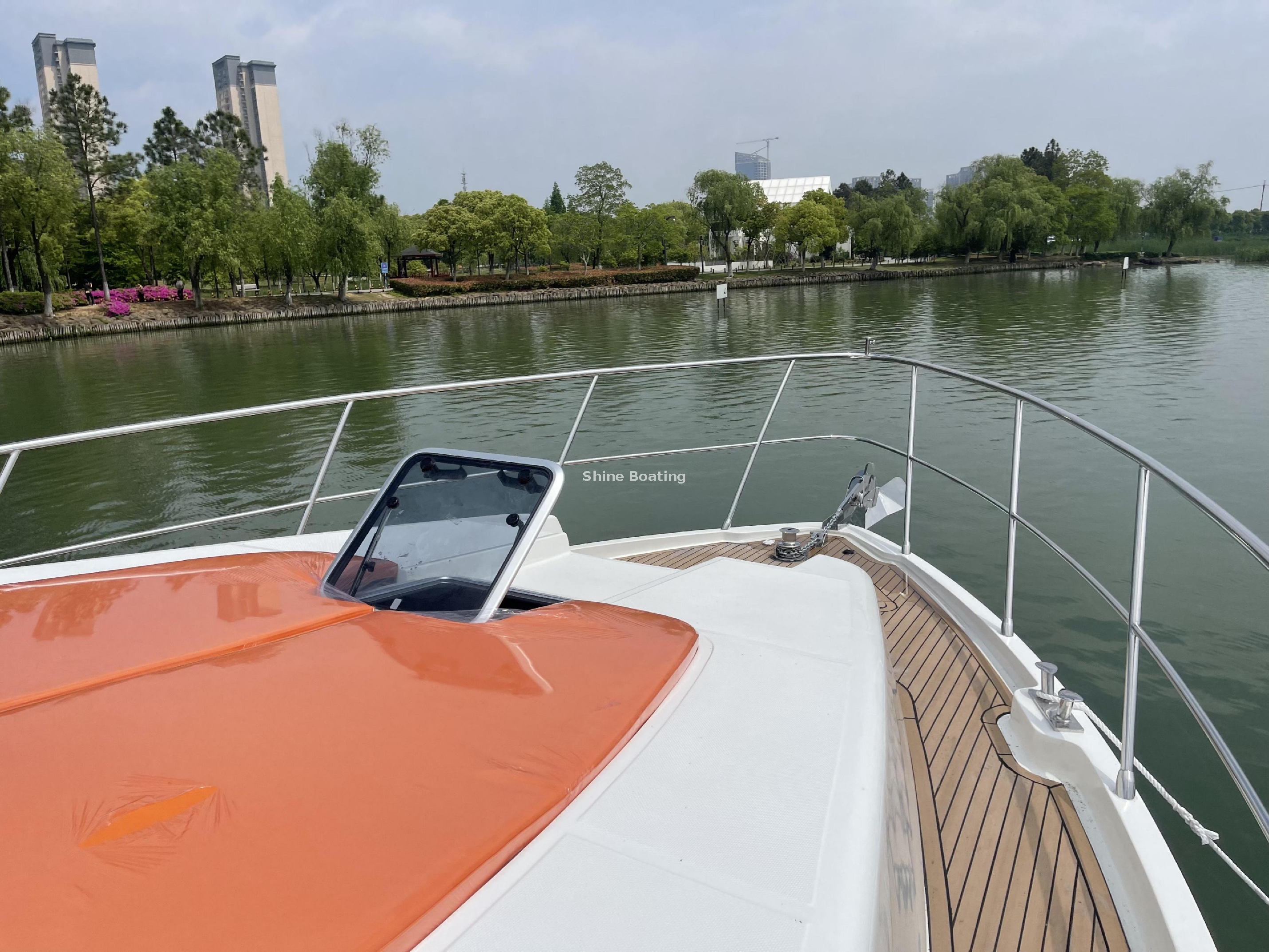

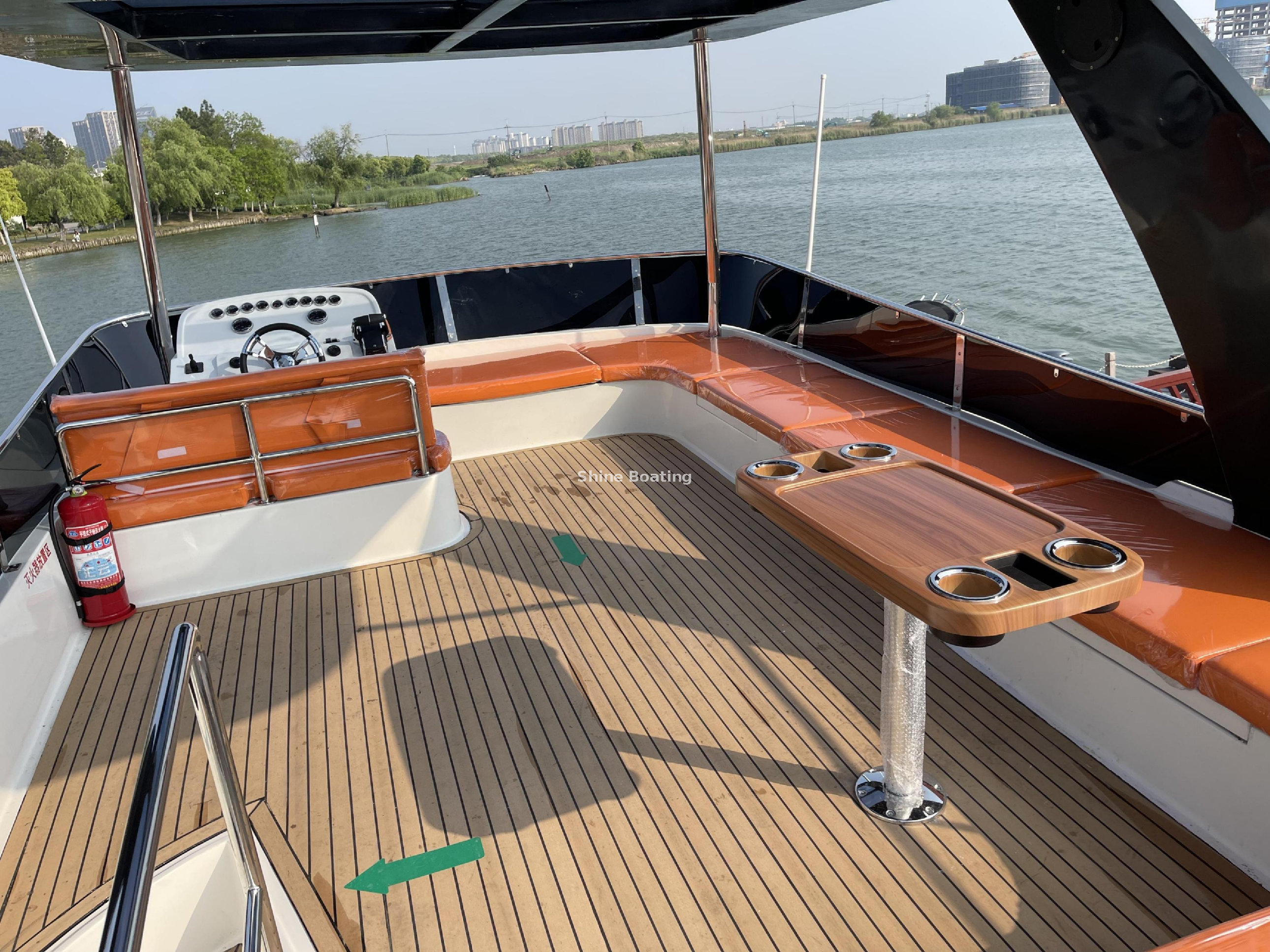

*Equipped with 316L stainless steel railings, PVC fenders, and teak‑look deck for enhanced durability and luxury appearance.

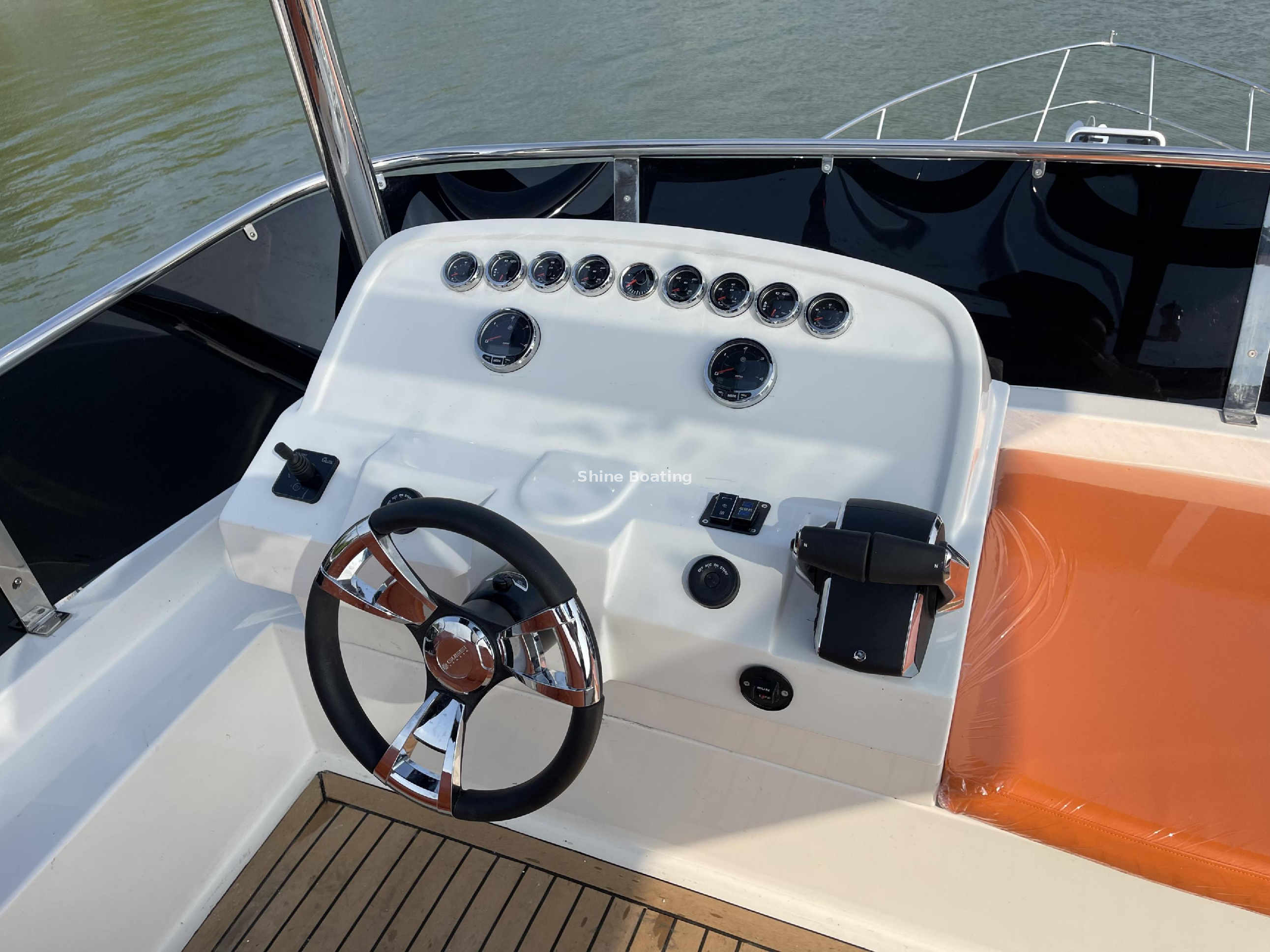

*Twin 270HP Mercury inboard/outboard engines with hydraulic steering deliver strong power, high reliability, and low failure rate.
*Matching 12kW generator and dual 500L fuel & freshwater tanks support long‑distance cruising and self‑sufficient offshore use.
*Stable hull design guarantees safe and comfortable navigation under various sea conditions.
*Certified for 12 passengers, ideal for business receptions, family gatherings, high‑end parties, and yacht charter.

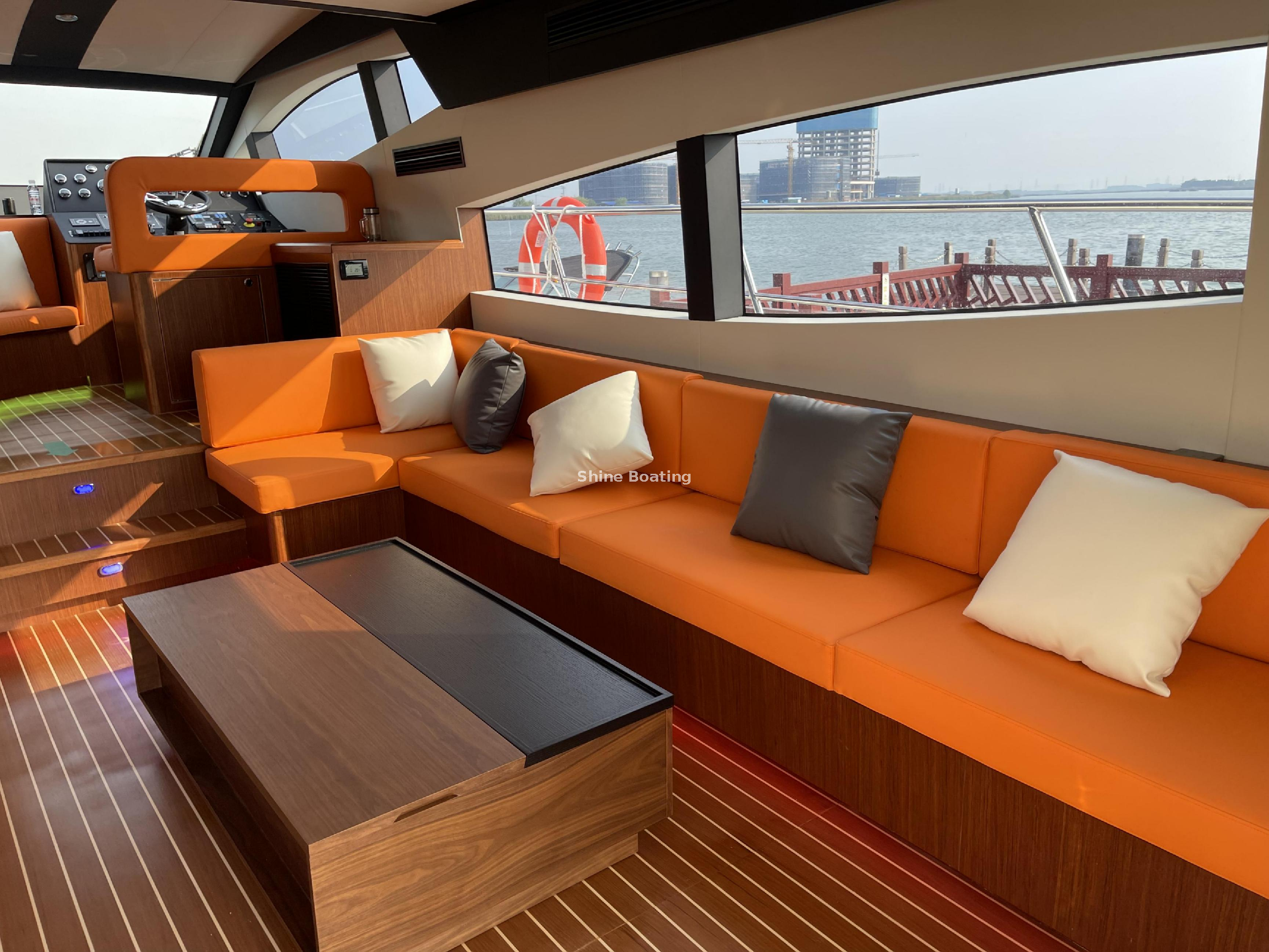

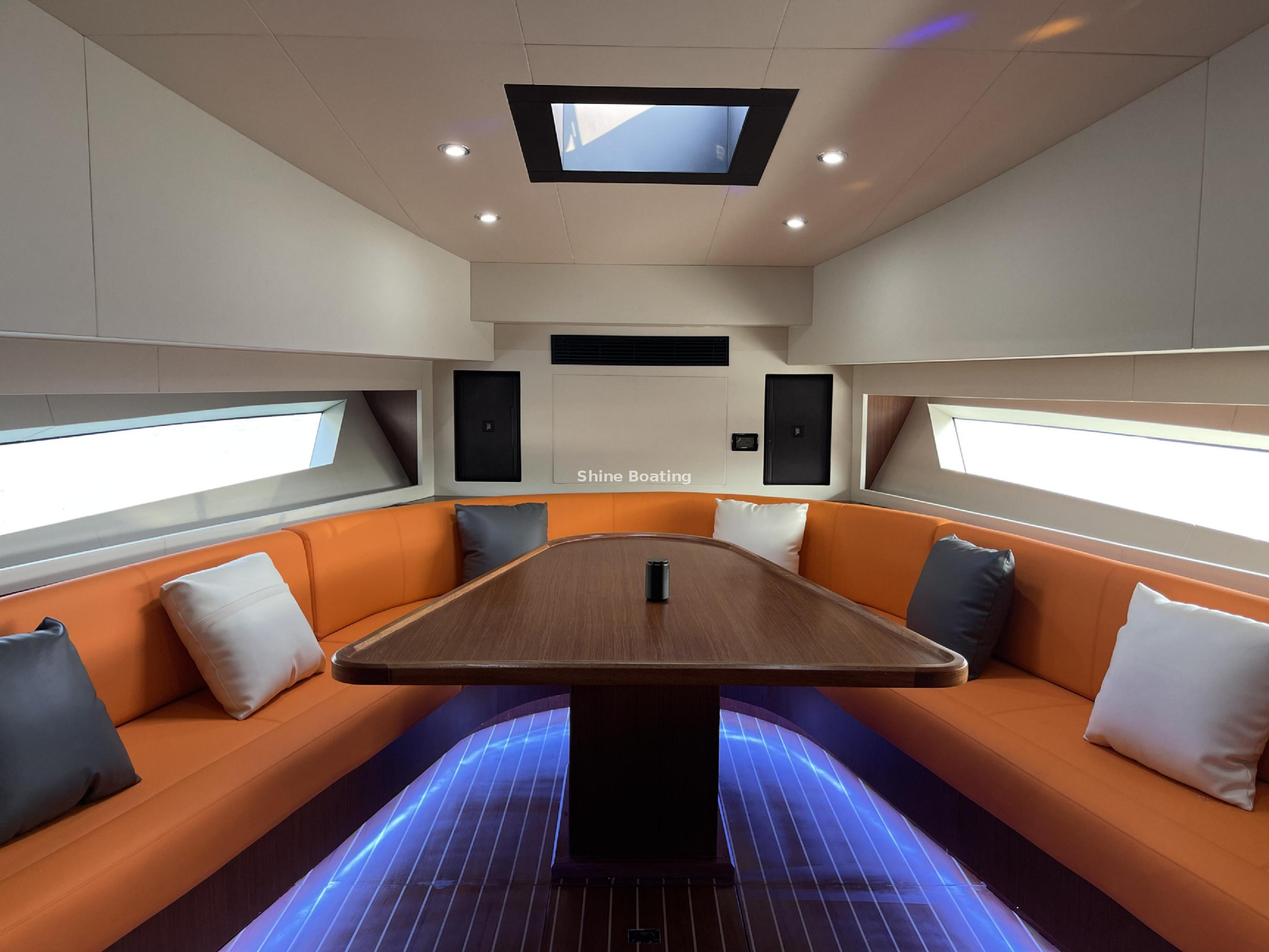

*Deluxe teak high‑gloss decoration, solid wood floor, imported PU upholstery, full soundproofing, and premium leather seating.

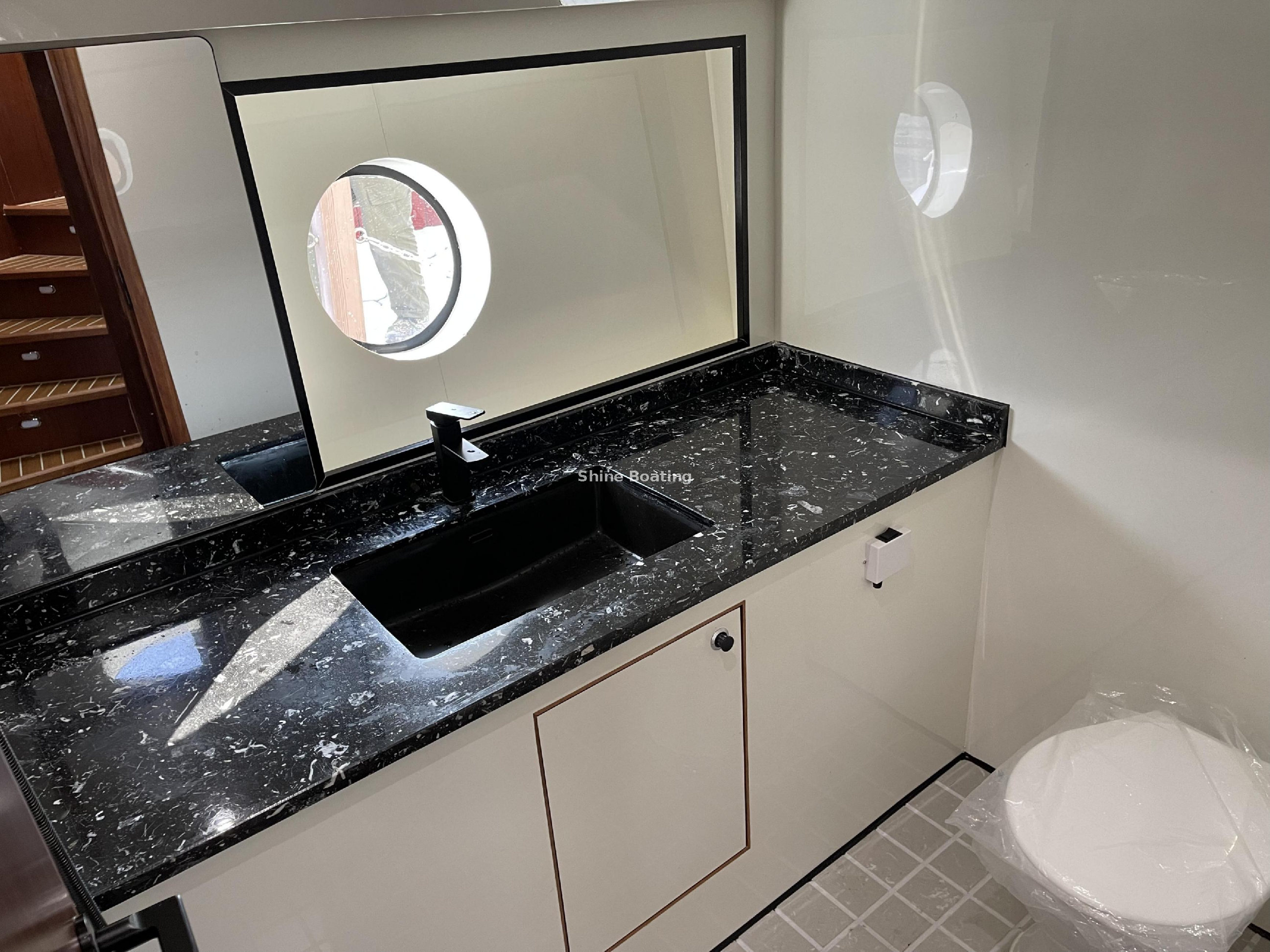

*Built‑in lower cabin KTV system, dual 42‑inch TVs, full audio system, and independent restrooms create a five‑star leisure experience.
*Full set of marine‑grade power distribution, 12 large‑capacity batteries, and professional marine cable for stable power supply.
*Complete safety equipment: fire extinguishers, life jackets, life rings, fire box, bilge pump to meet international marine safety standards.

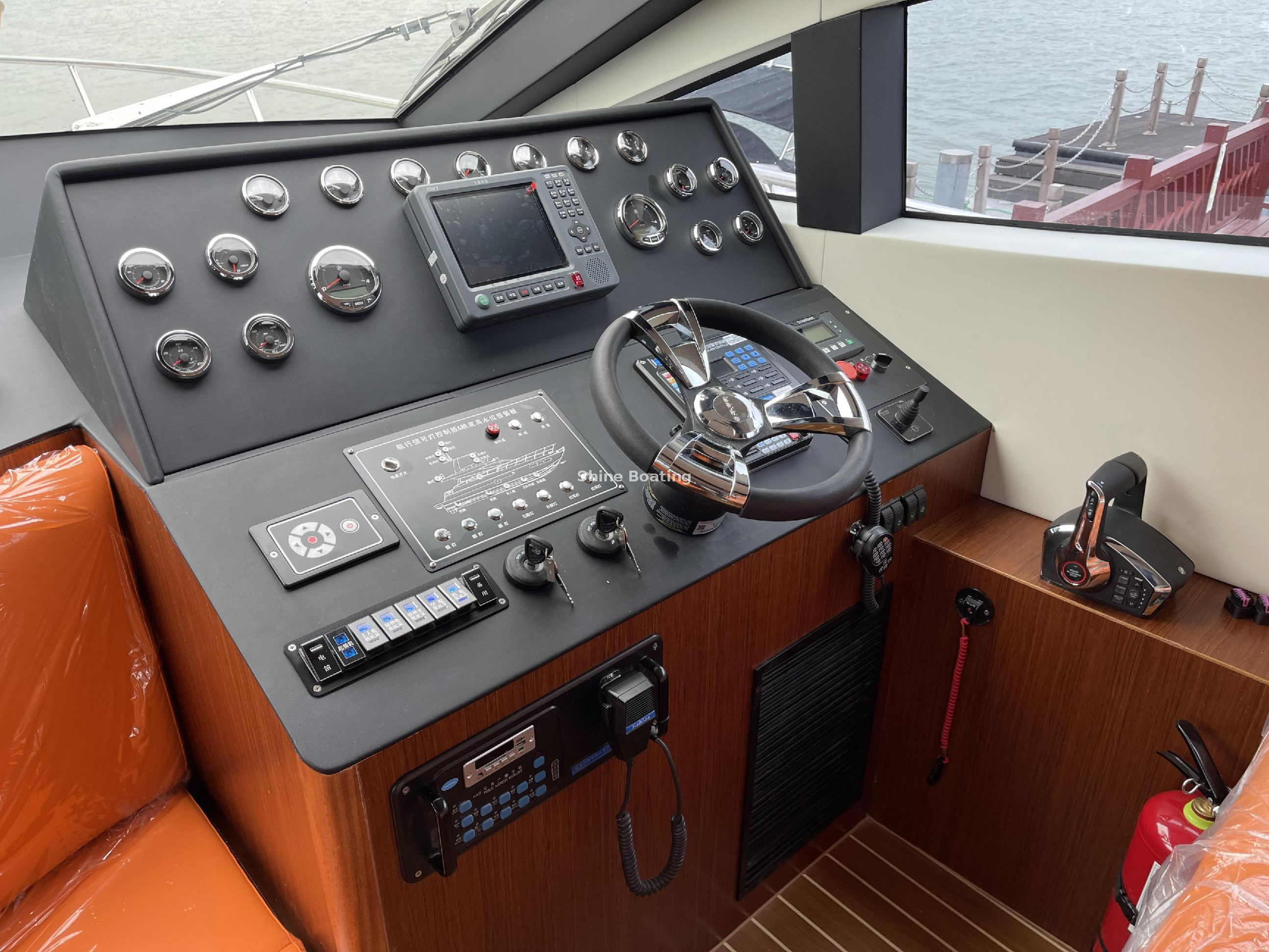

*Full navigation lights, signal lights, USA‑imported search light, magnetic compass, and Japanese VHF for safe sailing.
*Triple marine air conditioners, electric toilets, water heater, indoor & outdoor showers, and aerospace refrigerator.

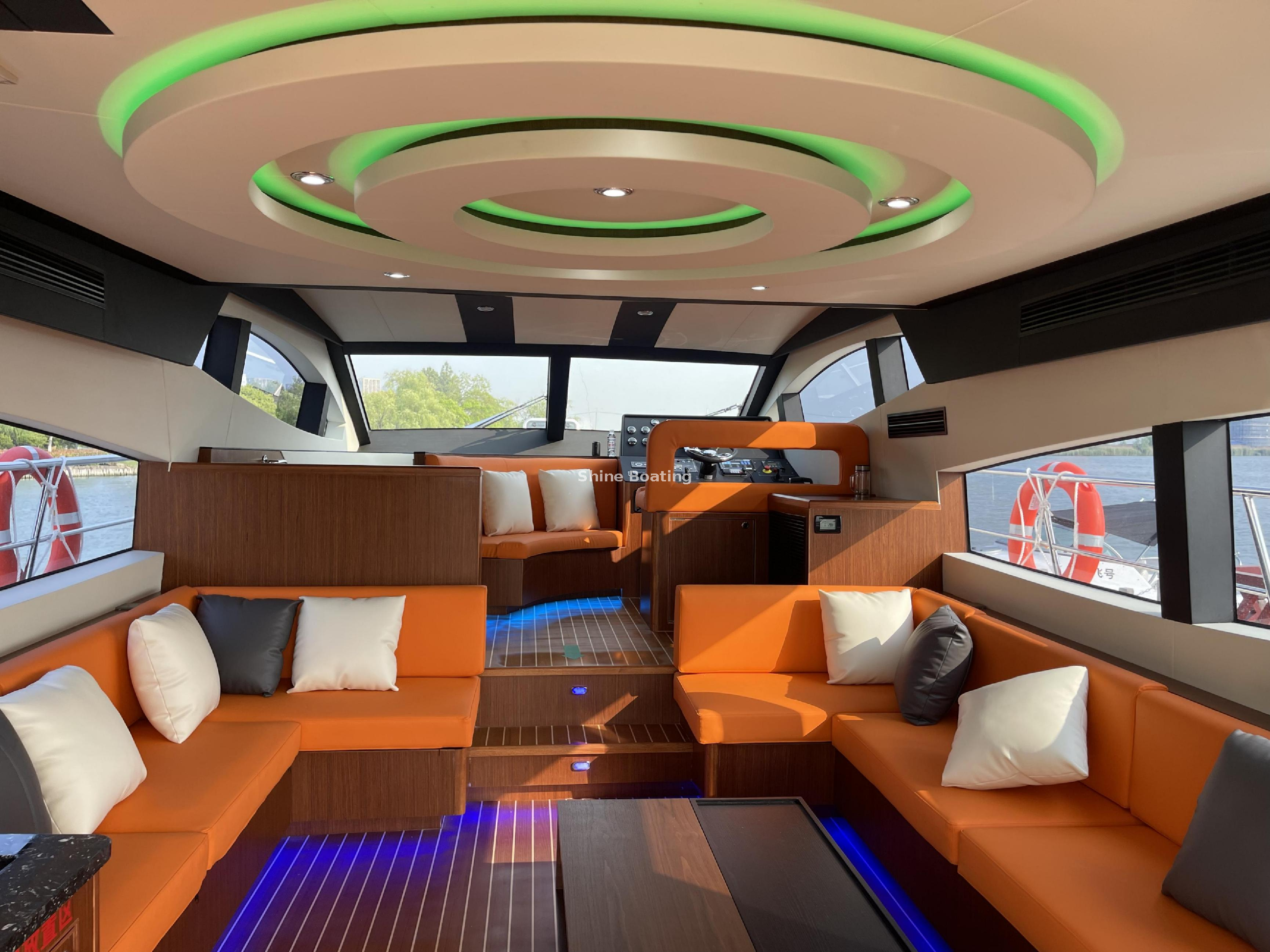

*Full LED lighting system, TV lifting bracket, high‑power audio, and subwoofer for all‑around entertainment.
*Professional anchoring system with 24V electric windlass, stainless steel anchor, and 60m anchor chain for easy mooring.
*Mature production technology, strict quality control, and international standard configuration.
*Ready for delivery & use, short preparation cycle, suitable for dealers, resorts, and high‑end customization.
*Supports global shipping, bulk orders, and OEM/ODM services, with strong cost‑performance for the global luxury yacht market.
Product Parameters
| Item | Specification |
|---|---|
| Length Overall (LOA) | 19.20 m |
| Design Waterline Length | 15.40 m |
| Beam | 4.79 m |
| Depth | 2.635 m |
| Full Load Draft | 1.05 m |
| Full Load Displacement | 35.90 t |
| Fuel Capacity | 500 L |
| Fresh Water Capacity | 500 L |
| Passenger Capacity | 12 persons |
| Design Category | Category III |
| No. | Item Name | Model | Quantity | Unit |
|---|---|---|---|---|
| 1 | Gelcoat | IN130157S | 1123 | kg |
| 2 | Gelcoat (Non-slip) | IN130157S | 120 | kg |
| 3 | Woven Roving | 600 g/m² | 9084 | kg |
| 4 | Chopped Strand Mat | 300 g/m² | 2865 | kg |
| 5 | Marine Resin | 102 | 12900 | kg |
| 6 | PU Structural Core | 30 kg/m³ | 9.1 | m³ |
| 7 | Curing Agent | V388 | 238 | kg |
| 8 | Accelerator | - | 238 | kg |
| 9 | Acetone | - | 150 | kg |
| 10 | Fender Material | PVC-80mm | 55 | m |
| 11 | PVC Sheet | - | 320 | m² |
| 12 | Connecting Bolts | 316 | 65 | kg |
| 13 | Vacuum Accessories | - | 280 | m² |
| 14 | Other Accessories | - | - | - |
| No. | Item Name | Model | Quantity | Unit |
|---|---|---|---|---|
| 1 | Main Engine | Mercury Inboard/Outboard 270 HP | 2 | set |
| 2 | Generator Set | 12 kW | 1 | set |
| No. | Item Name | Model | Quantity | Unit |
|---|---|---|---|---|
| 1 | Solid Wood | 250502500 | 3.6 | m³ |
| 2 | High-Gloss Panel | Teak | 112 | pcs |
| 3 | High-Gloss Teak Veneer & Edge Strip | 50 | 430 | m |
| 4 | High-Gloss Teak & White Wood Floor | 512202440 mm | 15 | pcs |
| 5 | (Red Glue) Waterproof Plywood | 612202440 mm | 160 | pcs |
| 6 | (Red Glue) Waterproof Plywood | 912202440 mm | 20 | pcs |
| 7 | (Red Glue) Waterproof Plywood | 1212202440 mm | 20 | pcs |
| 8 | (Red Glue) Waterproof Plywood | 1512202440 mm | 20 | pcs |
| 9 | (Red Glue) Waterproof Plywood | 1812202440 mm | 20 | pcs |
| 10 | Waterproof Plywood (Standard) | 312202439 mm | 56 | pcs |
| 11 | Waterproof Plywood (Standard) | 612202440 mm | 45 | pcs |
| 12 | Waterproof Plywood (Standard) | 912202440 mm | 132 | pcs |
| 13 | Waterproof Plywood (Standard) | 1212202440 mm | 32 | pcs |
| 14 | Waterproof Plywood (Standard) | 1512202440 mm | 32 | pcs |
| 15 | Waterproof Plywood (Standard) | 1812202440 mm | 12 | pcs |
| 16 | 3M Hook & Loop Fastener | 250 | 5 | rolls |
| 17 | Main Door Hinge | 95 mm | 24 | pcs |
| 18 | Soundproof Cotton (Rock Wool) | 10 cm | 220 | m² |
| 19 | Soundproof Cotton with Aluminum Foil | Standard | 70 | m² |
| 20 | Perforated Aluminum Plate | 1.22*2.44 m | 38 | pcs |
| 21 | Solid Wood Edge Strip | - | 1 | ship |
| 22 | Panel Splicing | - | 1 | ship |
| 23 | AB Glue | Taiwan | 50 | kg |
| 24 | Strong Adhesive N-105 | - | 10 | barrels |
| 25 | White Glue | 15 kg | 5 | barrels |
| 26 | Stainless Steel Screws | Various | 1 | batch |
| 27 | Main Door Lock | - | 3 | pcs |
| 28 | Door Stopper | - | 8 | pcs |
| 29 | Socket | Bull | 20 | pcs |
| 30 | Switch | Bull | 9 | pcs |
| 31 | LED Strip | - | 40 | m |
| 32 | Step LED Light | - | 35 | pcs |
| 33 | Bedside Reading LED Light | - | 2 | pcs |
| 34 | Piano Hinge S/S 2' | 20 | m | - |
| 35 | Piano Hinge S/S 3' | 15 | m | - |
| 36 | Hardware | Home Decoration | 1 | batch |
| 37 | Soft Upholstery Leather (PU) | - | 450 | yards |
| 38 | Woodwork Consumables | - | 1 | ship |
| 39 | Paint | Dabao | 220 | kg |
| 40 | Captain Chair | - | 1 | pcs |
| 41 | Salon Sofa | High Leather | 2 | sets |
| 42 | Coffee Table | Solid Wood + Stone Slab | 2 | sets |
| 43 | Lower Cabin KTV Room | High Leather | 1 | set |
| No. | Item Name | Model | Quantity | Unit |
|---|---|---|---|---|
| 1 | LCD TV | 42 inch | 2 | pcs |
| 2 | TV Lifting Bracket | 220V | 1 | set |
| 3 | Electric Toilet | 24V | 2 | sets |
| 4 | Marine Air Conditioner | O-Star 24000K | 3 | sets |
| 5 | Lower Cabin Ventilator | 220V | 4 | sets |
| 6 | Washbasin & Faucet Set | Ceramic | 3 | sets |
| 7 | Water Heater | 40L | 1 | pcs |
| 8 | Shower Set | - | 1 | set |
| 9 | Faucet | - | 2 | sets |
| 10 | Inlet & Outlet Valve | - | 2 | sets |
| 11 | Vegetable Sink | - | 1 | pcs |
| 12 | Aerospace Refrigerator | - | 1 | pcs |
For more details about the boat, please contact us !
