Product Description

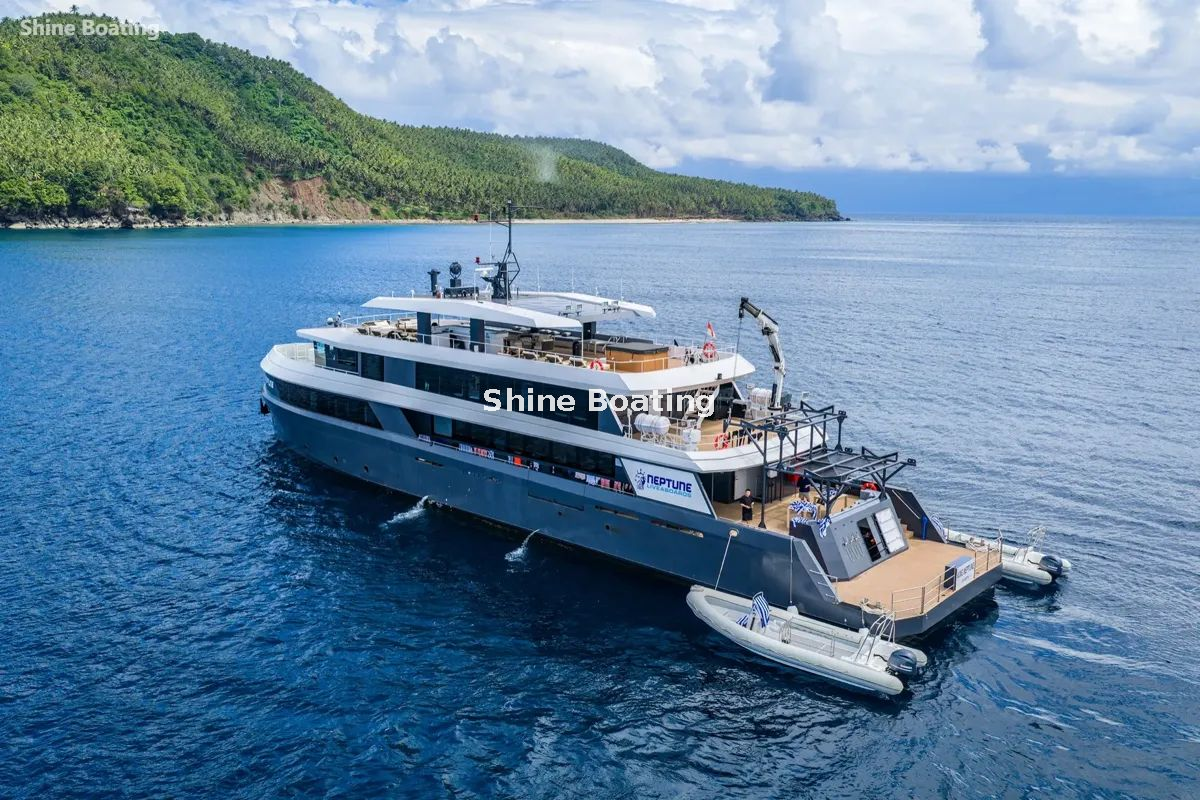

This steel‑built passenger vessel operates within coastal navigation zones, specially built for tourist accommodation, diving expeditions and diverse marine leisure tourism activities.

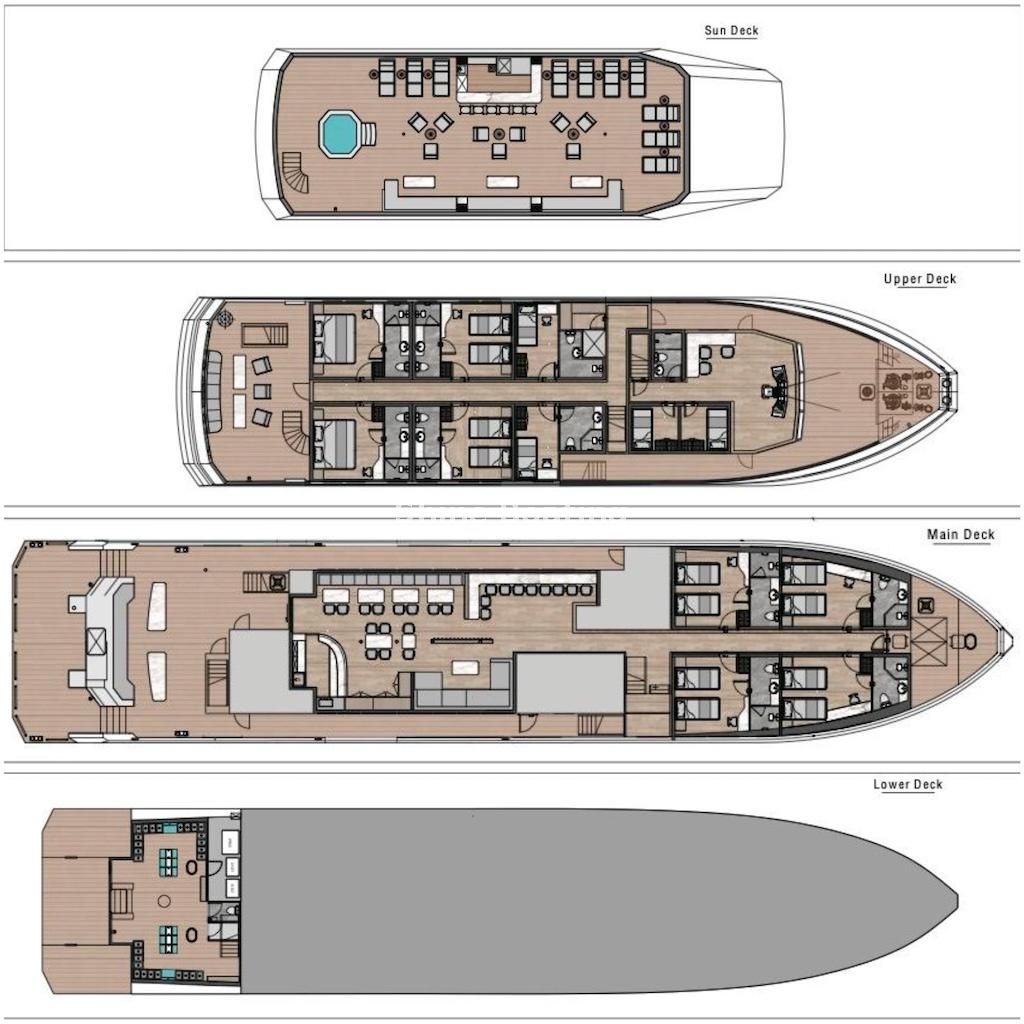

It adopts an all‑welded steel hull structure, featuring twin‑screw and twin‑rudder configuration powered by dual diesel engines. The vessel is designed with a transom stern and raked stem. It has one continuous freeboard deck together with a raised fore deck, and a double‑bottom structure arranged within cabin zones.
Spaces located below the main deck include steering engine room, diving equipment room, air‑supply equipment room, engine room, air‑conditioned engine room, laundry room, storage room, crew dining room, food storage room, crew cabins, toilets and bath rooms.

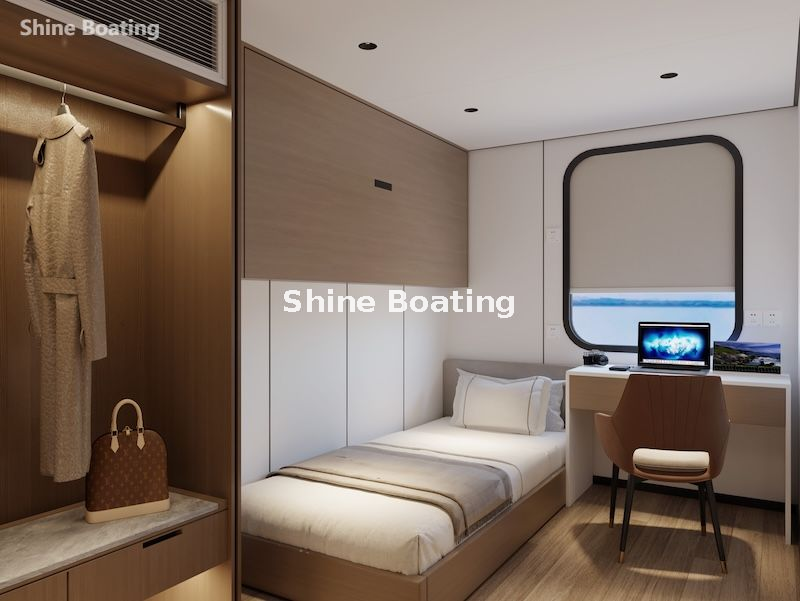

Arranged on the main deck are electrical machinery and generator room, galley, passenger dining room, camera area, passenger cabins and hawser store.

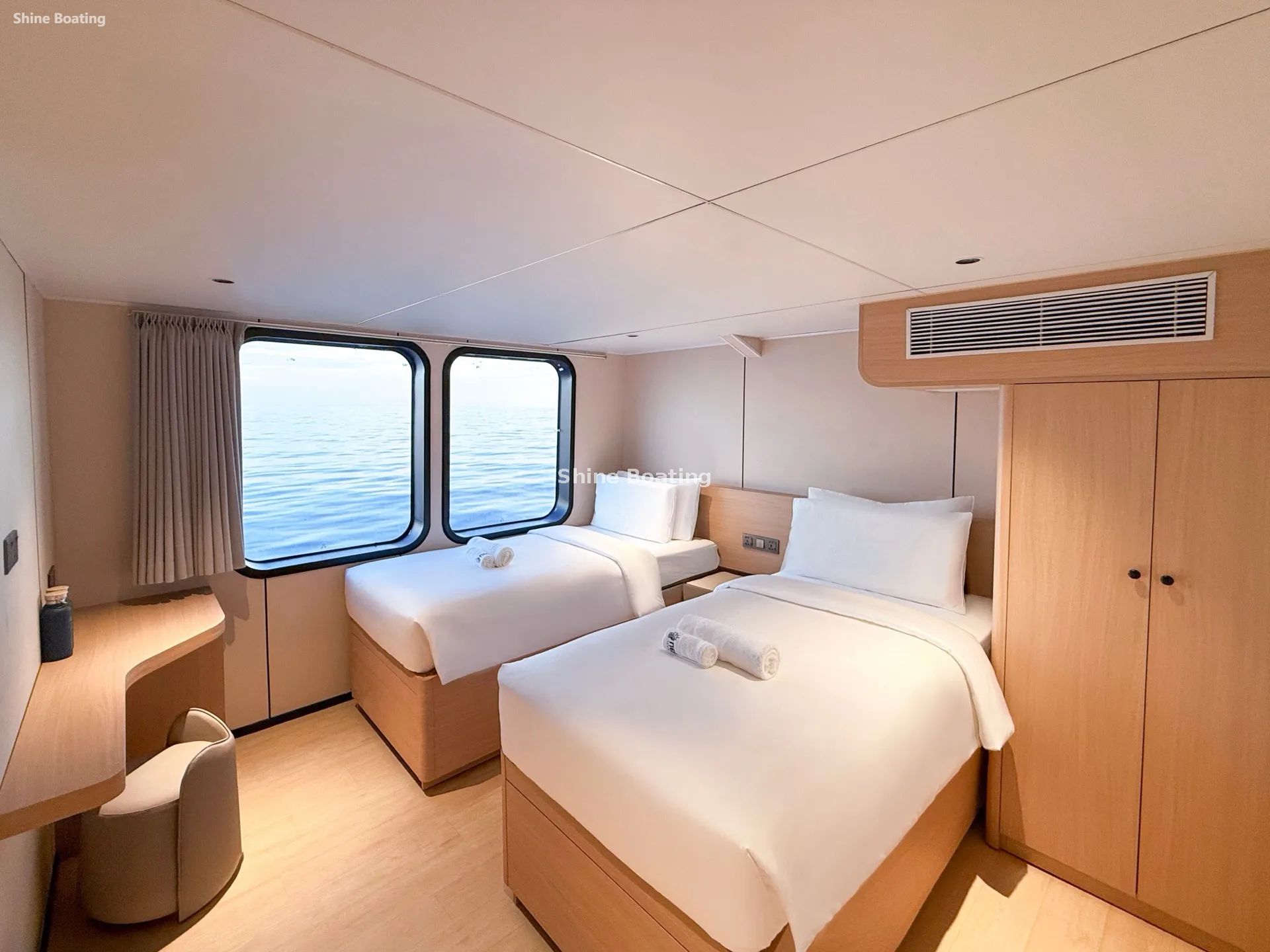

The upper deck houses passenger cabins, fire‑fighting equipment room, crew cabins, toilets and wheelhouse.

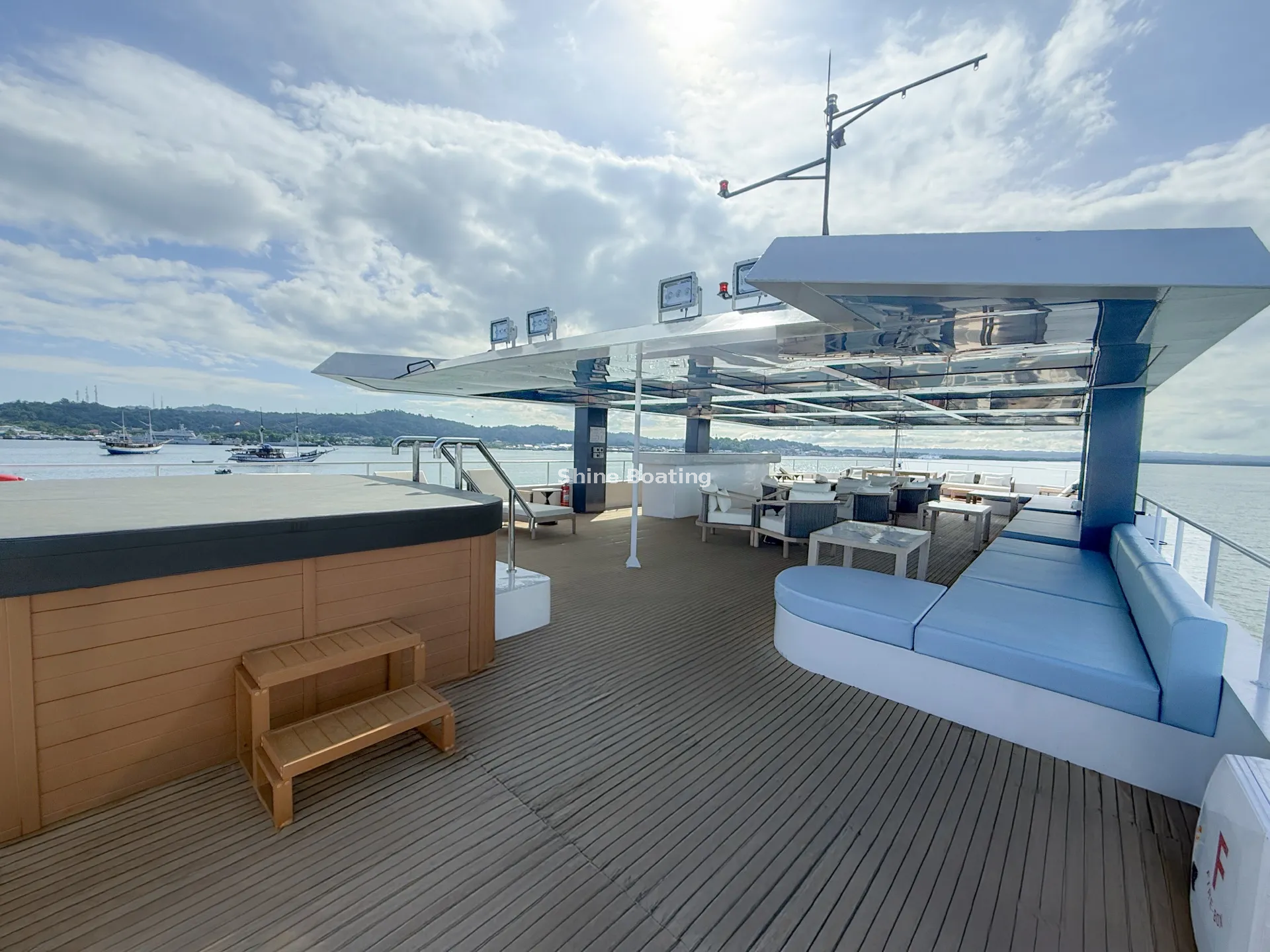

The sun deck is fitted with a bar counter, outdoor seating tables and bathtubs for guest recreation.
The compass deck is outfitted with light mast, radar, antennas and other navigation‑related equipment.
1. Robust all‑welded steel hull with twin screw twin rudder dual diesel power system, delivering reliable performance for coastal tourism, diving and overnight passenger accommodation operations
2. Well‑organized multi‑deck layout, separating crew working zones, guest accommodation, dining and recreation areas for orderly vessel management
3. Complete functional rooms including galley, laundry, food storage and dedicated diving equipment room to support long‑term offshore stay‑over tourism
4. Sun deck recreational facilities such as bar, outdoor tables and bathtubs enhance tourist experience for charter and leisure business
5. Full navigation hardware installed on compass deck ensures safe coastal sailing
‑ Marine tourism project investors focusing on coastal overnight & diving tourism
‑ Vessel operators providing luxury charter and marine experience services
‑ Ship dealers for commercial coastal passenger vessels
‑ Coastal overnight tourist accommodation voyages
‑ Professional diving tourism and expedition trips
‑ Premium private or corporate marine charter services
Product Parameters
| Item | Current Technical Basis |
|---|---|
| Vessel Type | Steel-hull diving & liveaboard passenger vessel. |
| Primary Use | Guest accommodation, diving operations and marine leisure tourism. |
| Navigation Area | Coastal service basis in the currently available information. |
| Hull & Propulsion | All-welded steel hull with twin-screw, twin-rudder, twin-diesel propulsion. |
| General Arrangement | Below-main-deck service and machinery spaces; main-deck public and guest areas; upper-deck accommodation and wheelhouse; sun-deck leisure area; compass-deck navigation and communication equipment. |
| Parameter | Specification |
|---|---|
| Length Overall (LOA) | 45.186 m |
| Length on Waterline (LWL) | 46.000 m (as shown on the current arrangement drawing) |
| Length Between Perpendiculars (LBP) | 43.536 m |
| Beam | 9.300 m |
| Moulded Depth | 4.300 m |
| Design Draft | 2.400 m |
| Frame Spacing | 0.550 m |
| Service Speed | Approx. 10 knots under the stated design conditions |
| Main Propulsion | Twin diesel engines; current arrangement/machinery basis indicates 600 HP × 2 |
| Full-load Displacement | Approx. 676.1 t |
| Deadweight | Approx. 261.1 t |
| Passenger Capacity | 24 persons |
| Crew Capacity | 20 persons |
