45ft

MAIN CHARACTERISTICS

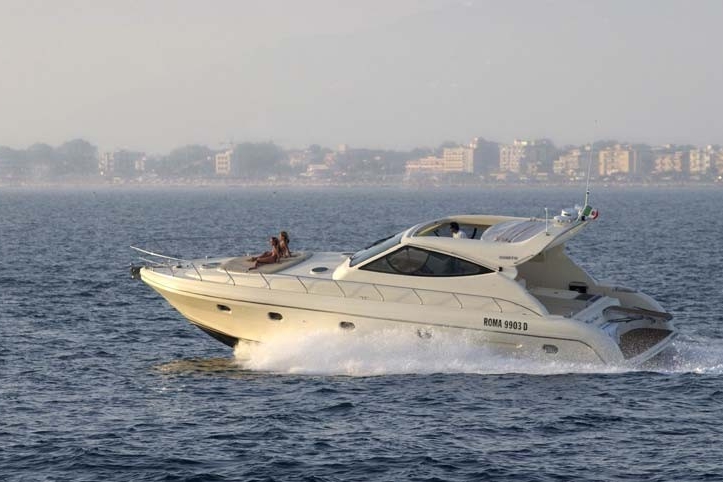

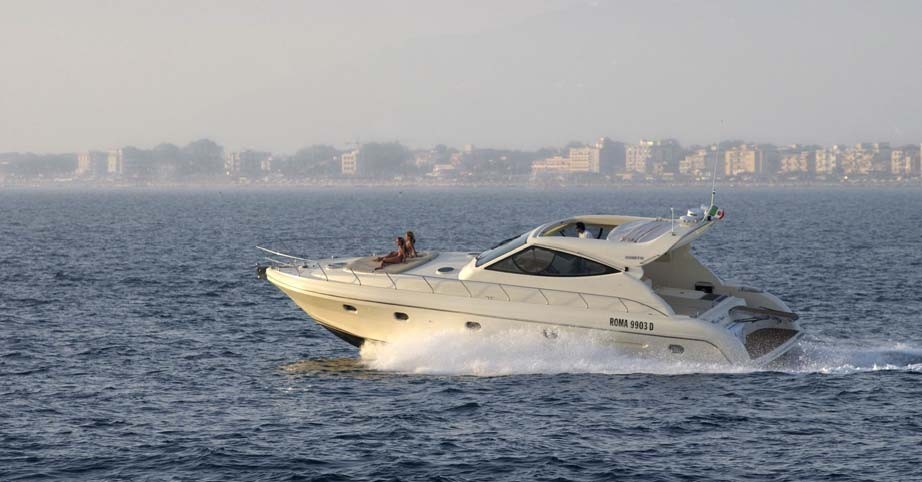

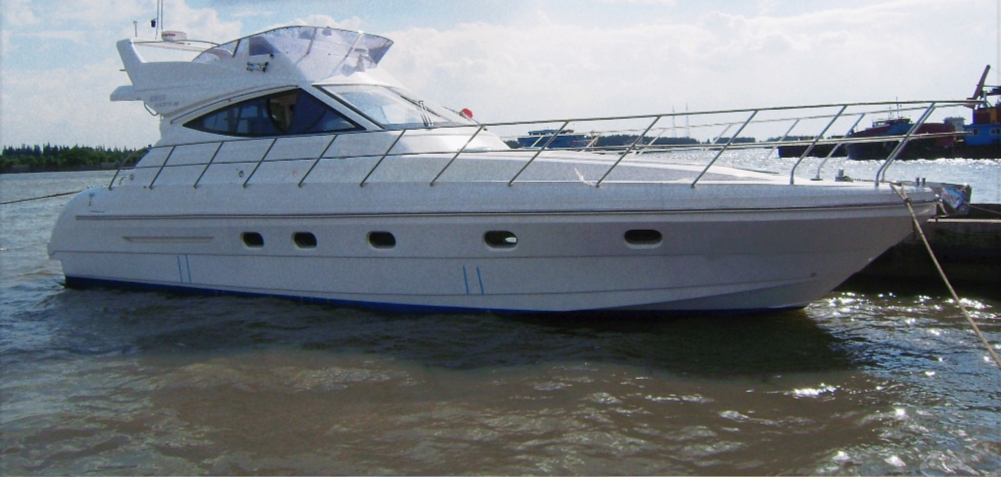

The boat is built with reinforced fiberglass , CE homologated , with deep V hull and with a very good speed performance and sea keeping at medium sea conditions.

The deck is insulated against heat and noise by the foam inside the sandwich structure . Particular attention has been paid to the nautical characteristics of the boat , whose hull’s lines allow her to obtain very good cruising speeds already with a total power installed of 1000 Hp .

A good manoeuvrability is assured by means of twins rudders in stainless steel installed under the bottom .

On the aft a swim platform is moulded integrated in the hull , this platform is of a big size and it is very reachable in a very easy way trough a passage from the cockpit , the area of the platform is also used for the dinghy storage .

The strength of the hull structures is such to allow the boat to navigate even with bad sea and weather conditions .

The interior furniture are in Cherry wood and the tissues for sofa , curtains , bed covers etc are at choice from the shipyard catalogues .

All the cabins are supplied with carpets at choice from catalogue .

ENGINE ROOM AND MAIN MACHINERY

Engine supports in light alloy and steel

N.2 fuel tanks in light alloy

N.2 fuel filters Racor type

N.2 sea water inlet 2” with filters and valve with safety by-pass for bilge suction

N.2 exhaust silencers

Exhaust manifolds

Sea-water cooling circuit built and installed inside stainless steel box

N.2 stuffing boxes

N.2 stainless steel rudders vertical at hull

N.2 base struts

N.2 axis

N.2 coupling flanges for engine inverter

N.2 four blade propellers

Coupling bar for rudders

N.1 hydraulic cylinder connected to the rudders

Emergency bar

Electronic controls for engine acceleration and mechanical inverter

N.1 fixed fire fighting system by CO2 remotely

N.1 water tank of 600 lt

N.1 fresh water pump

N.1 water heater

Engine room heat and noise insulation (foam sheets with lead shield)

Wood floor covered with antiskid light alloy

HYGIENIC PLANTS

N.3/4 shower pumps with floating switch in a fiberglass box easily accessible

N.3/4 electric W.C – Saninautic type

N.3/4 bathroom sinks

N.3/4 washbasin mixer

N.3/4 shower mixer with flexible

ELECTRIC PLANT AND ACCESSORIES

Electric plant 220V AC / 24 V DC

Main panel with terminal in engine room

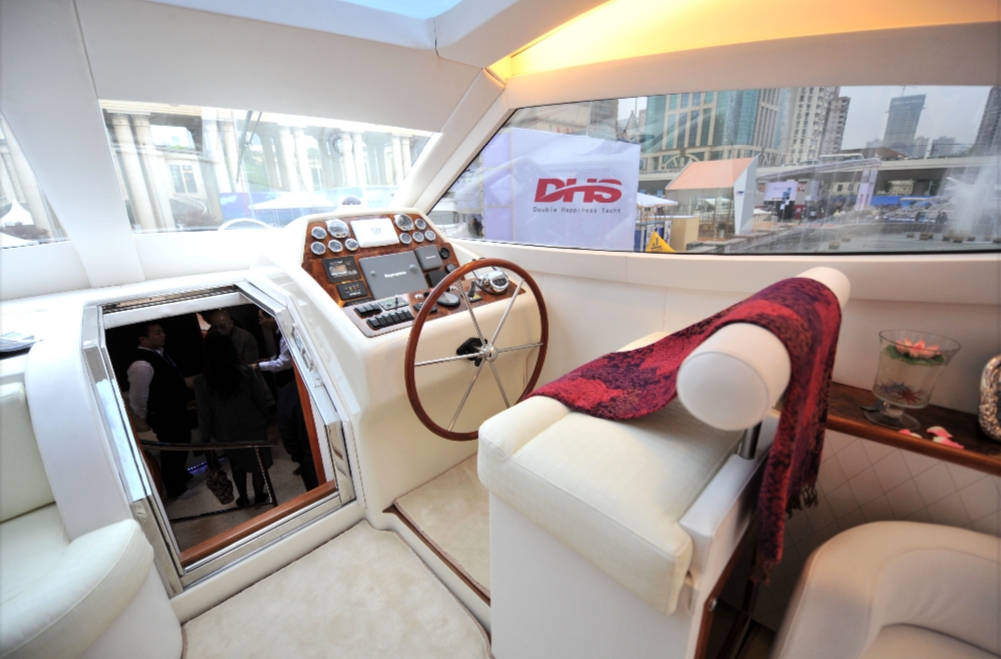

Pilot console engine and electronics panels

N.2 rpm counter

N.2 oil manometers

N.2 water thermometers

N.2 reduction gear manometers

N.1 log

N.1 water level gauge

N.1 fuel level gauge

N.1 voltmeter/alternators charging

N.1 VHF

N.1 Compass

N.1 GPS/Plotter

N.Autopilot

N.1 horn

N.1 set of navigation and submersible lights

Alogen lights in all cabins

N.2 batteries 180 Ah each

N.1 shore power cable 20 Mt with American plug - QUESTO C’E’?

N.1 automatic rectifier 40 Ah (battery charger)

N.2 batteries switch

[ Anodic protection with zincs connected to a copper plate ]

[ N.2 wipers ]

[ N.1 windlass 1000 W ]

[ Hatches to engine room opens by an hydraulic cylinder ]

[ Flaps ]

[ Elettrohydraulic steering for autopilot ]

[ Hydraulic gangway (Gandola/Besenzoni type) ]

KITCHEN

N.1 Refrigerator with Freezer tot. 160 Lt

Oven

Vitroceramic cooking plates

Marble on top of galley bar

Hanghing lockers

SS sink in stainless steel or enamel

Mixer

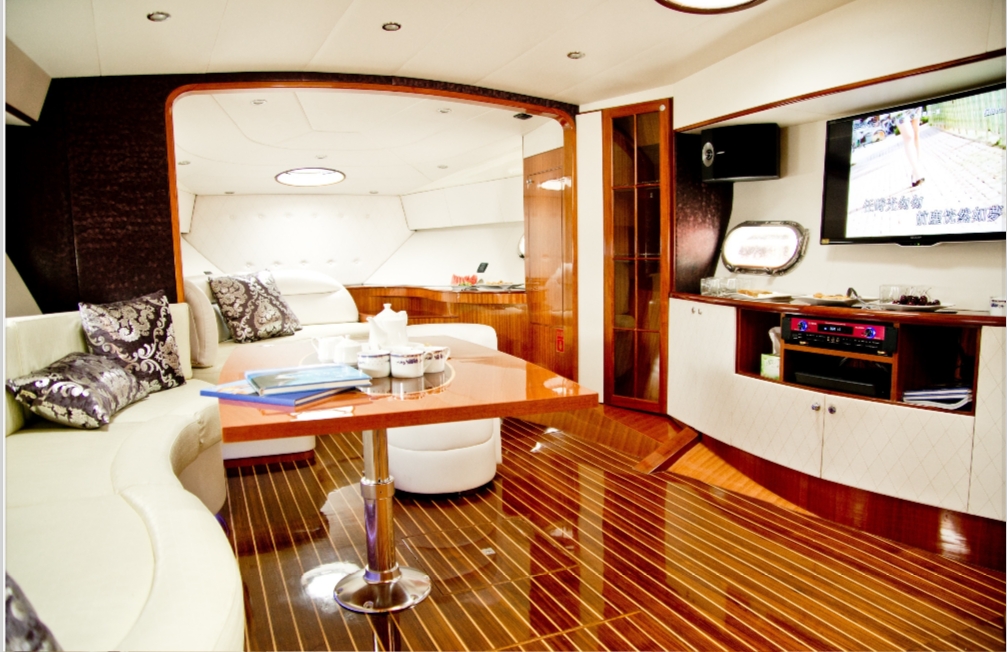

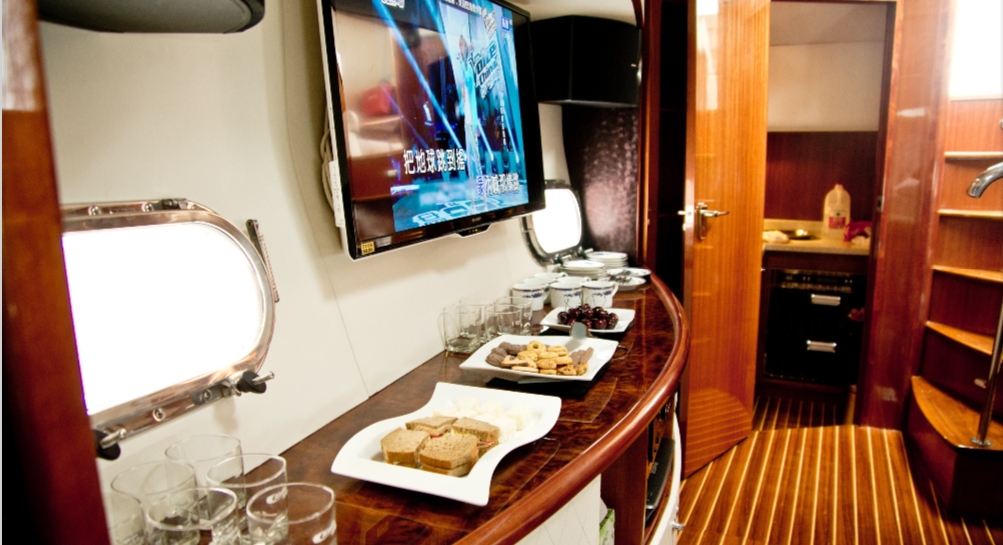

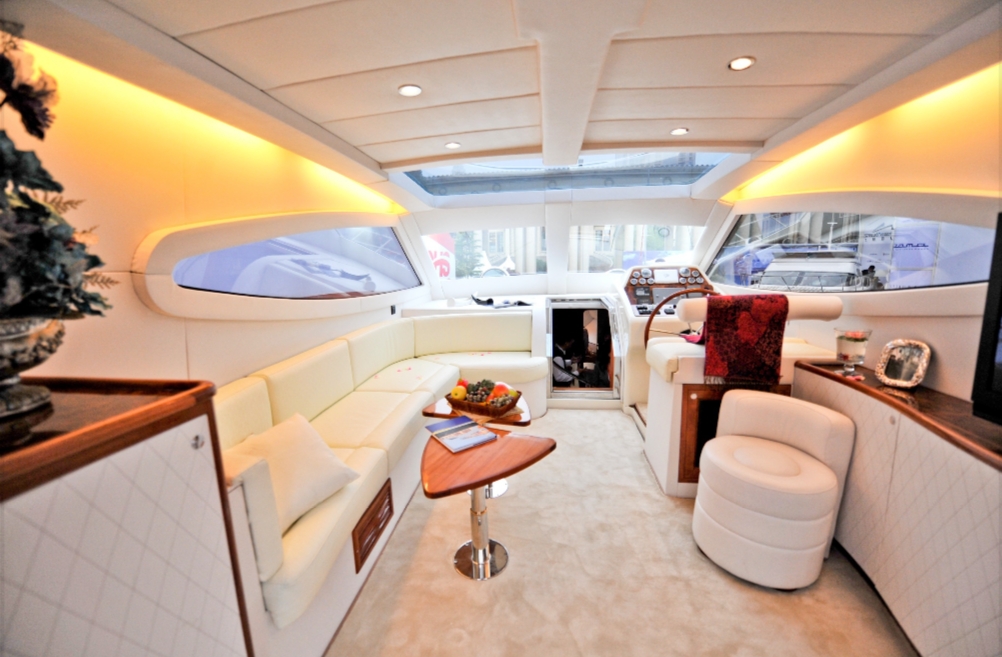

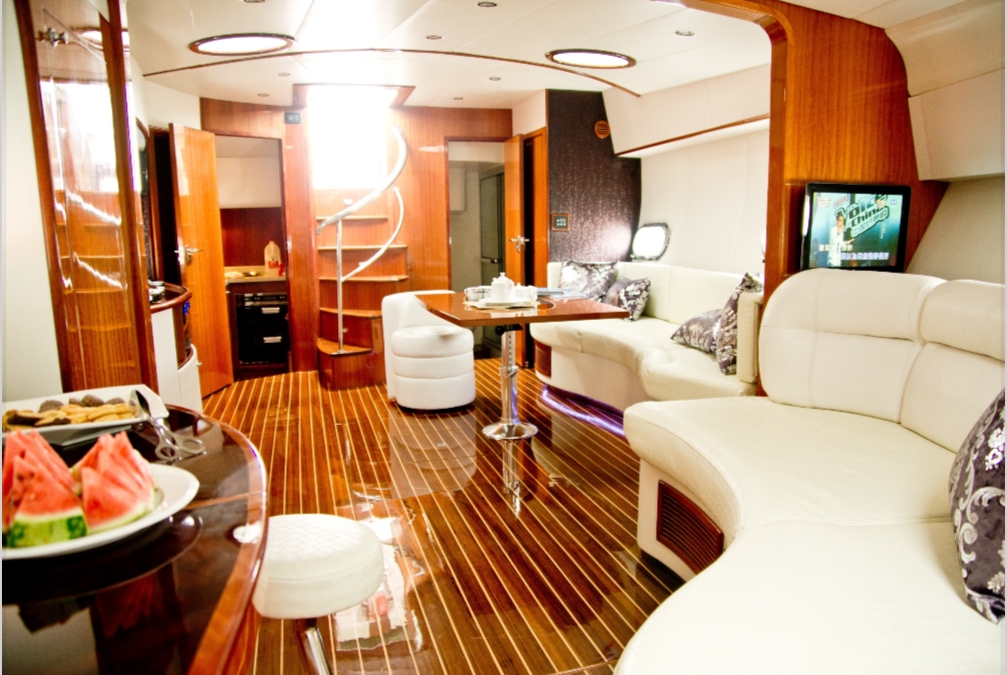

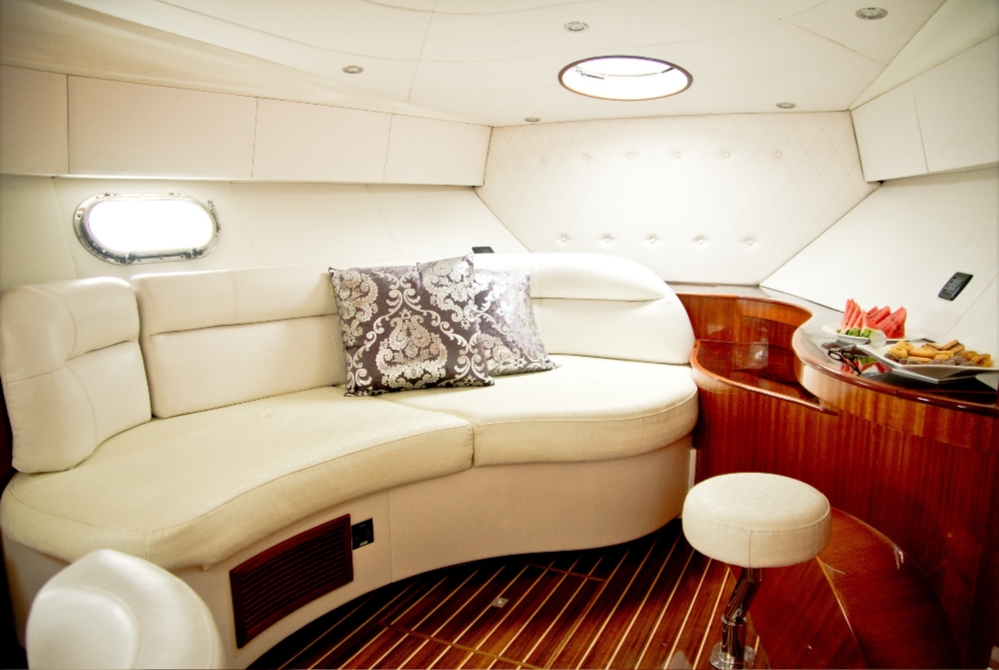

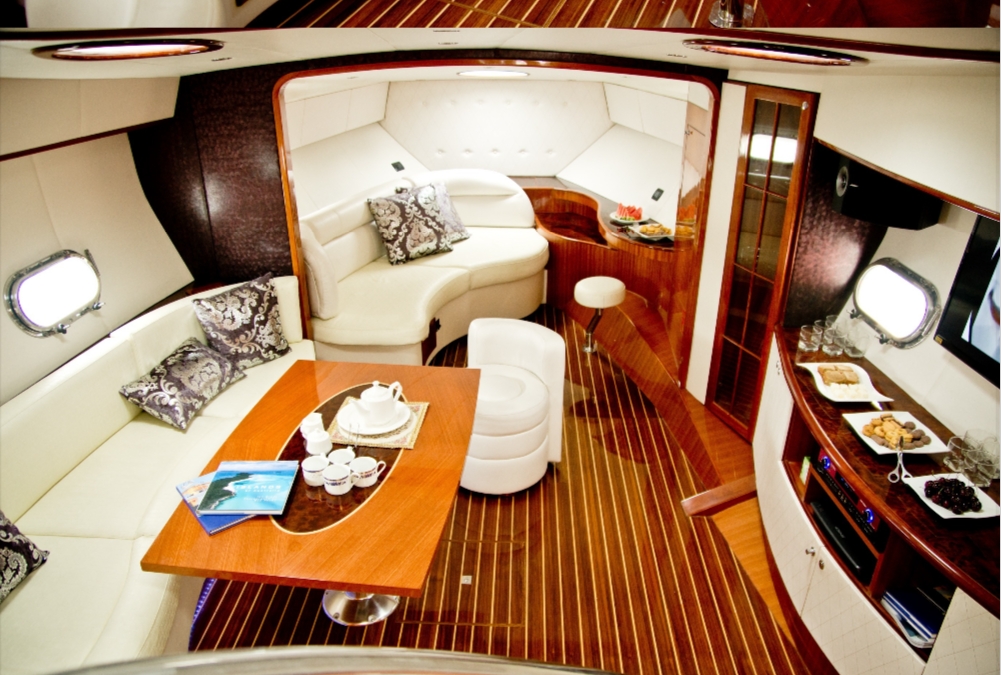

SALOON

N.1 sofa U shape convertible in bed

Dining table

TV place

Main panel

Curtains

N.2 Hatches on the ceiling

Walls covered in cherry wood

Ceiling covered in sky panels and heat insulated

Hatches door in stainless steel and temperated glass

CENTRAL GUEST CABIN

With double bed and separate bed or N.2 separate beds

Curtains

Hanging lockers , beds , cupboards , walls and bed tables all in cherry wood

Ceiling in sky panels

Doors in wood

Mattress and cushions

Bed covers

Carpet on wood floor

Ceiling and walls heat insulated [TORNA ?]

GUEST CABIN AT AFT [? DA CONFERMARE LE VOCI]

With double bed or N.2 separate beds

Curtains

Hanging lockers, beds , cupboards , walls and bed tables all in cherry wood

Ceiling in sky panels

Doors in wood

Mattress and cushions

Bed covers

Carpet on wood floor

Ceiling and walls heat insulated [TORNA ?]

OWNER CABIN

N.1 double bed

Curtains

Hanging lockers , bed , cupboards , walls and bed table all in cherry wood

Ceiling in sky panels

Doors in wood

Mattress and cushions

Bed covers

Beauty

Carpet on wood floor

Ceiling and walls heat insulated [TORNA ?]

CREW CABIN (OPTIONAL) [ TUTTO DA CONFERMARE! ]

N.1 separate bed

Mattress and cushions

Access from hatch on the forward cabin top

Ceiling and walls heat insulated

GUEST BATHROOM

Walls in white laminate

All furnitures lacquered

Shower box with door

Floor in teak wood

Marble on sink top

Crystal mirror

Wc

OWNER BATHROOM

Walls in white laminate

All furnitures lacquered

Shower box with door

Floor in teak wood

Marble on sink top

Crystal mirror

Wc

CREW BATHROOM (OPTIONAL) [ TUTTO DA CONFERMARE ! ]

Walls in white laminate

All furnitures lacquered

Shower

[Floor in teak wood ?]

Sink top

Crystal mirror

Wc

DECK EQUIPMENT [ HO RIMESSO QUELLE DEL 48 SPORT ! ]

[ Stainless steel hand rail diameter 30 mm ]

[ Stainless steel anchor plate on deck ]

[ Electrical mooring winch 1000 W on aft of boat ] [1000 E NON 500]

[ 20 kg anchor with 75 mt chain diameter 8 mm ]

[ N.8 fenders with tissue glove ]

[ N.2 18 mm mooring ropes and chains 20 mt long ]

[ Stainless windshield in 8mm tempered glass ]

[ Fiberglass moulded radar arch. ]

[ Fore and aft sunbathing cushions ]

[ N.6 stainless steel mooring cleats ]

[ Top canvas with front openings and temperature sides ]

[ Back canvas ]
