Product Description

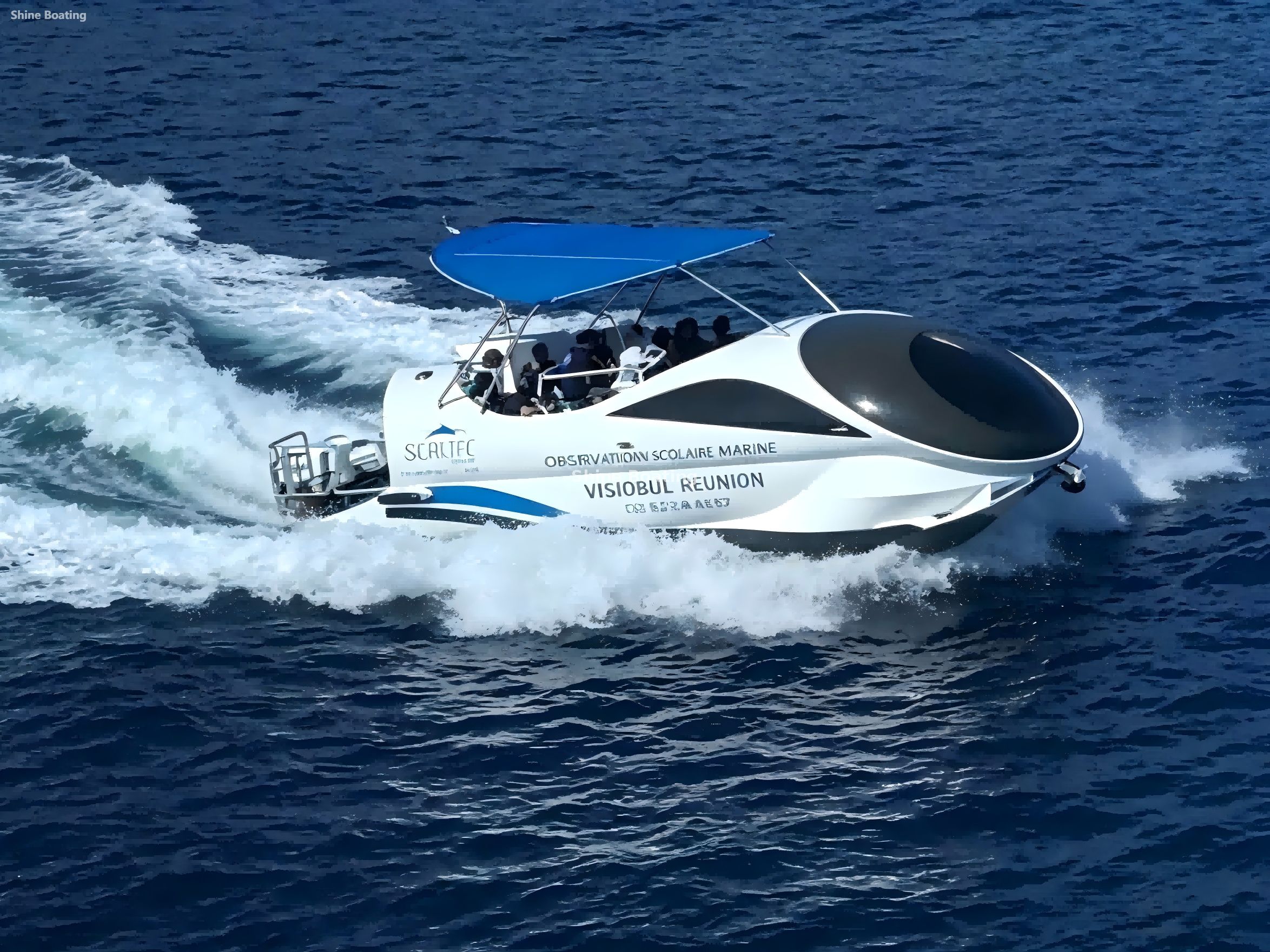

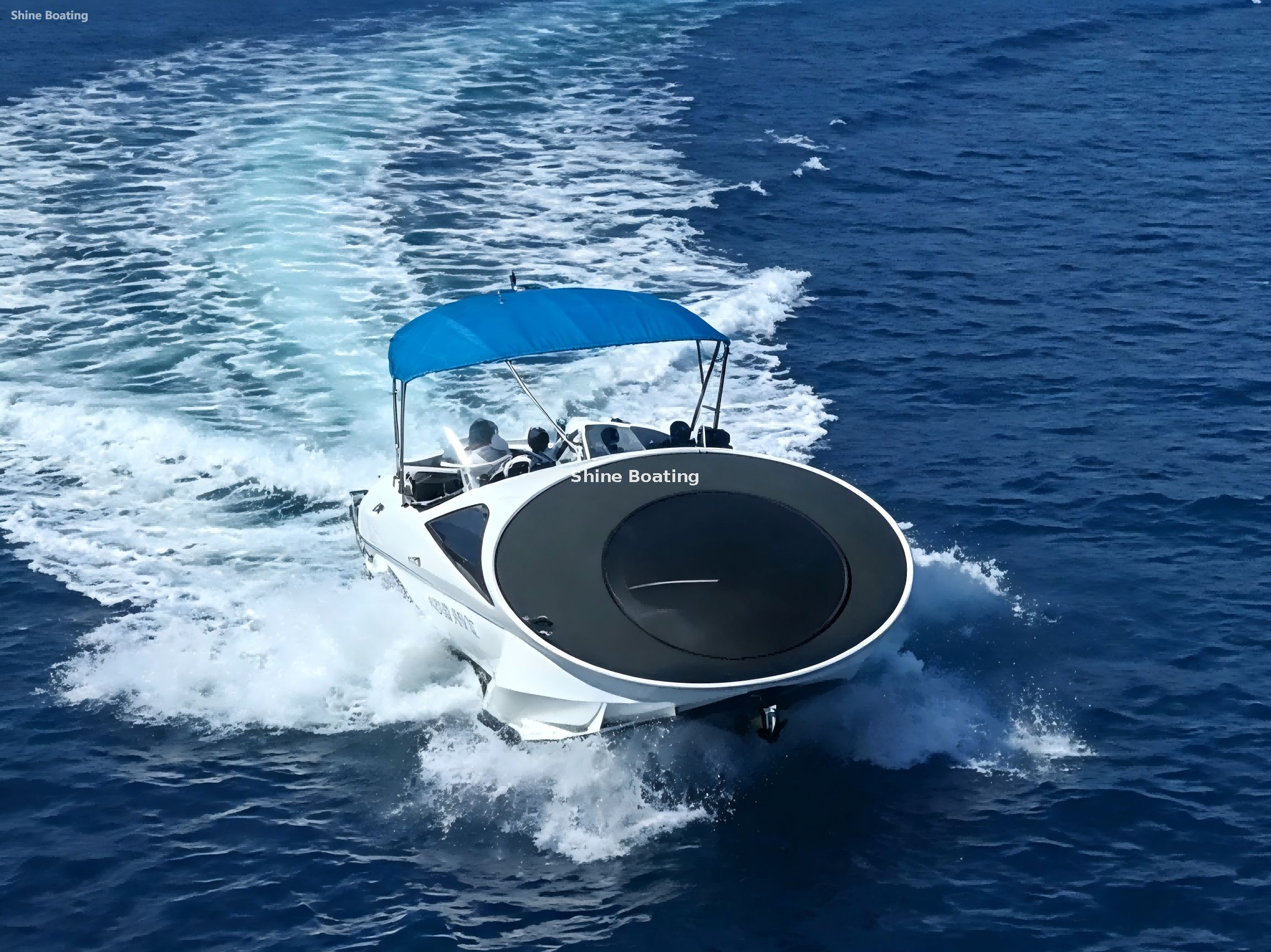

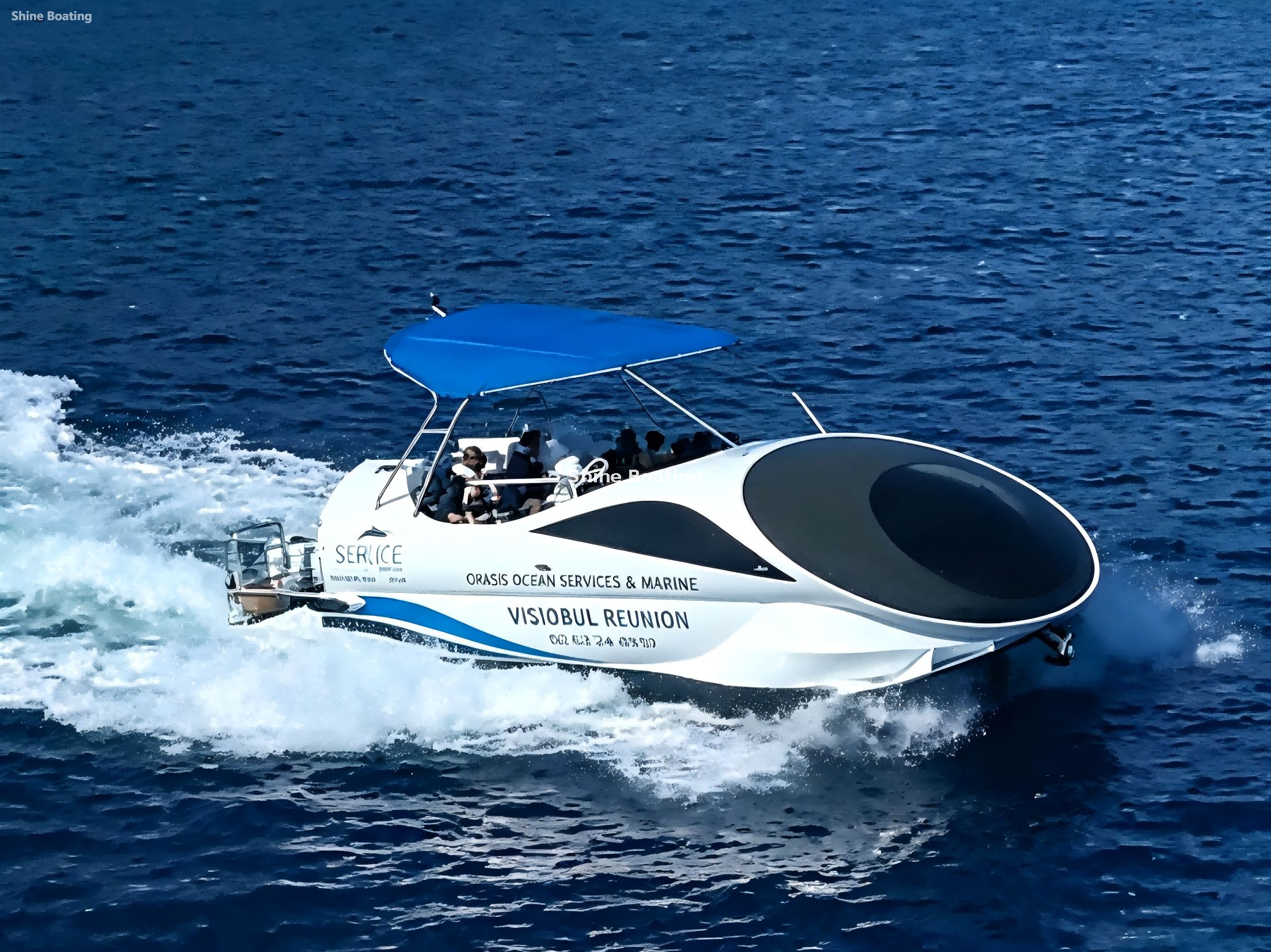

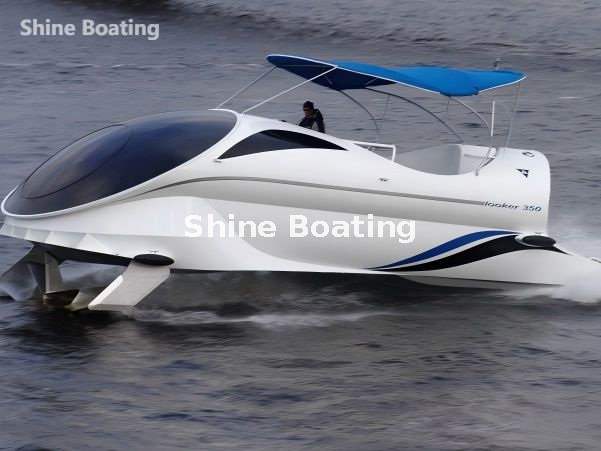

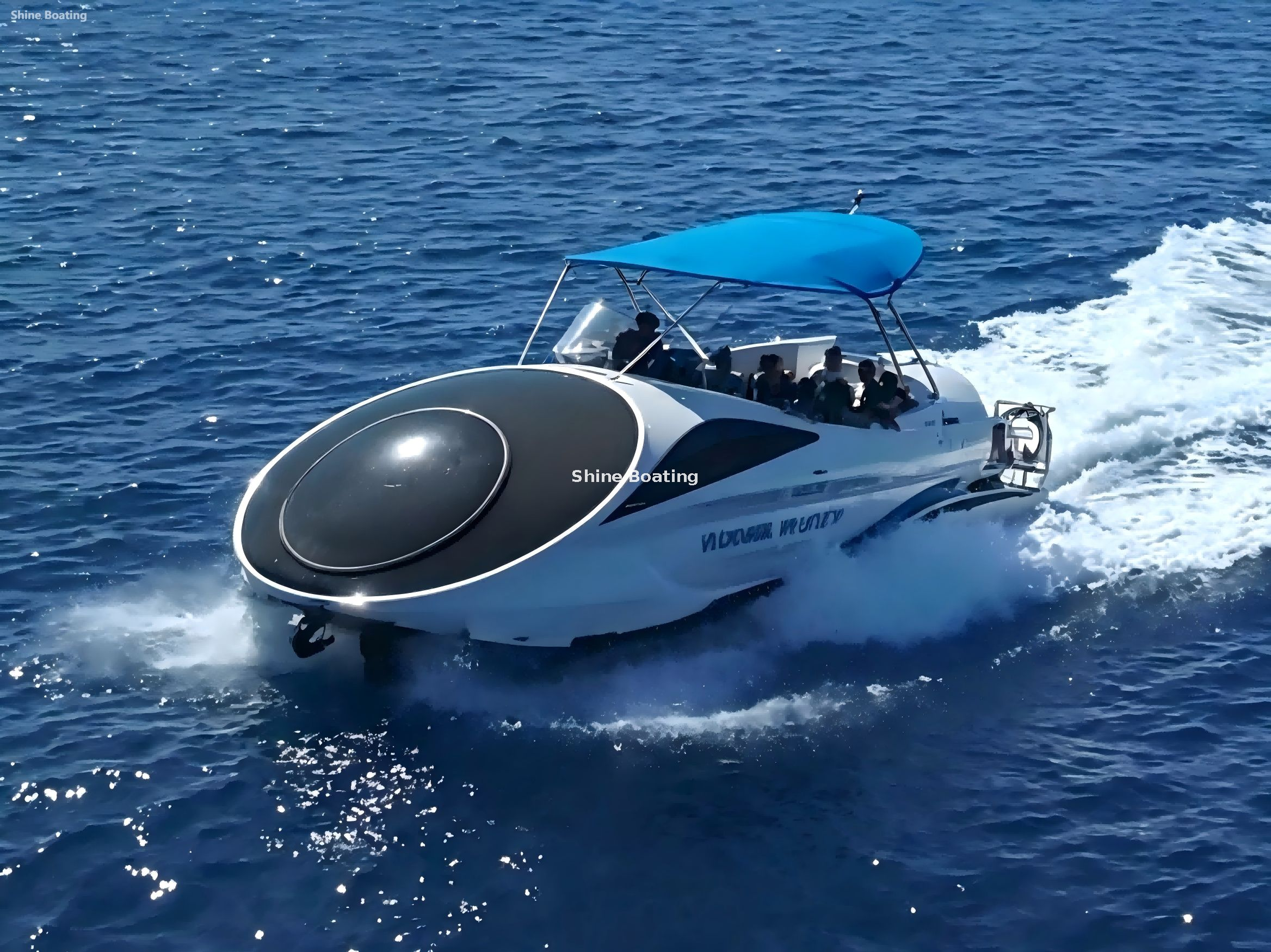

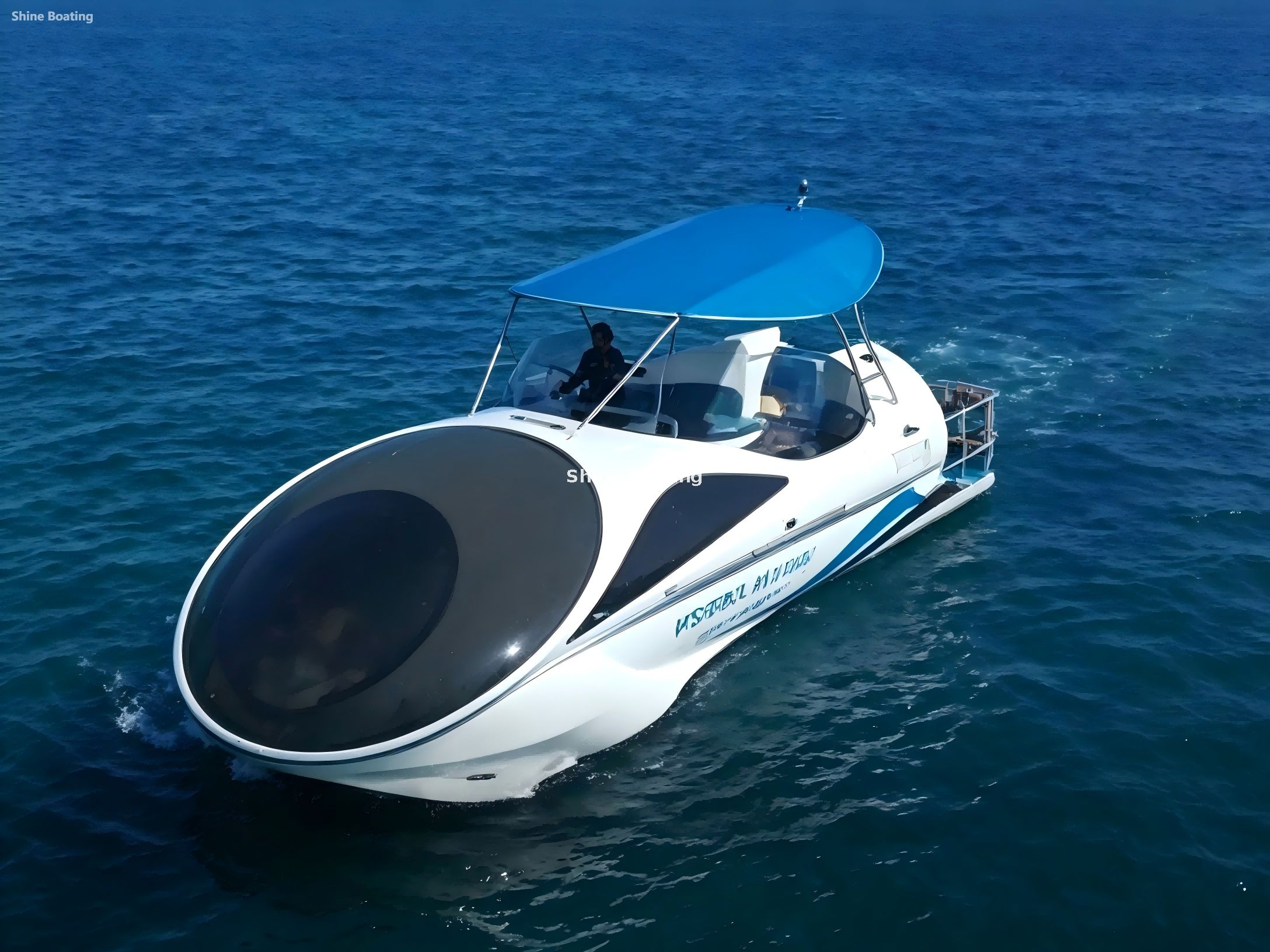

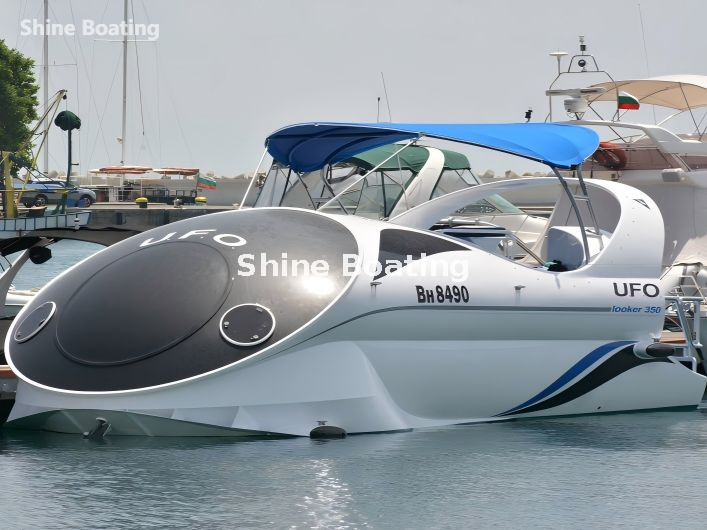

This is a semi-submersible sightseeing boat with a giant underwater viewing dome. Unlike conventional glass-bottom boats, a large spherical transparent pod protrudes below the hull at the bow; passengers enter the below-sea-level cabin to observe coral reefs and fish without diving. Main applications: coral reef eco-tours, dolphin and whale watching in coastal waters.
1. Underwater viewing pod (below bow)：2.4 m acrylic dome with FRP boundary structure, ~1.5 m below sea level; 8–10 ring seats, interior lighting and emergency ventilation; access via inclined ladder from main deck through a watertight hatch.
2. Main-deck passenger area：Open passenger area with 35–37 perimeter bench seats; central aisle to pod entrance; non-slip quartz deck finish.
3. Wheelhouse：Raised half-deck helm station aft with console and navigation/communication equipment, full visibility.
4. Canopy： Light aluminium frame with sun-shade canvas (curved aerodynamic styling as shown).
5. Aft machinery space：Outboards on transom; fuel tanks, battery and bilge compartments in separate watertight divisions.
6. Safety outfitting：Guard rails all round, lifebuoys, liferaft stowage, boarding/swim ladder for snorkelling.
1. Hull form：Modified shallow-V round-bilge form with the spherical pod suspended below the bow; shallow draft and generous beam for passenger-ship stability.
2. Materials：Marine unsaturated polyester resin (vinyl-ester optional below waterline) with E-glass woven roving / chopped-strand mat; PVC foam sandwich for deck and superstructure; isophthalic weather-resistant gelcoat.
3. Lamination：Hull and deck hand-laid in split female moulds (vacuum infusion optional); local reinforcement at keel and pod attachment.
4. Framing：Longitudinal framing with FRP girders and transverse bulkheads; ≥4 watertight bulkheads forming buoyancy, fuel and machinery compartments for damage stability.
5. Pod attachment：Acrylic dome joined to the FRP shell via 316L stainless flange with double seals, designed and tested to watertight pressure-hatch standards.
6. Strength & stability：Longitudinal & local strength, intact stability and passenger-capacity calculations per PRC statutory rules for domestic sea-going ships; calculation book included in design deliverables.
Product Parameters
| Item | Value | Remarks |
|---|---|---|
| Length Overall (LOA) | 12.05 m | Including viewing pod |
| Hull Length | Approx. 11.2 m | Excluding pod projection |
| Molded Breadth (B) | 3.90 m | |
| Molded Depth (D) | Approx. 1.65 m | |
| Design Draft (T) | 0.80 m | Shallow draft |
| Full Load Displacement | Approx. 13.5 t | |
| Passenger Capacity | 12 persons (incl. captain & crew) | |
| Speed | Cruise 10–12 kn, max ~15 kn | Touring economy speed 6–8 kn |
| Range | Approx. 120 n mile | |
| Main Engines | 2 × 150 HP 4-stroke petrol outboards | Yamaha F150 or equivalent |
| Service Area | Coastal / sheltered waters (scenic sea area) | Subject to survey approval |
| Hull Material | GRP (fibreglass) / FRP | Hand lay-up / vacuum infusion |
| Viewing Pod | Ø2.4 m acrylic dome | 8–10 persons capacity inside the pod |
Detailed Photos
| |
| |
| |
Packaging & Shipping
Company Profile
Shine Boating Co., Ltd. located in Shandong Province, is a dynamic enterprise specializing in the design, R&D, production, sales, and service. We aim to be a comprehensive solution provider for a diverse range of watercraft, including different high-speed boats, fishing boats (from 17 to 46 feet), luxury yachts (from 33 to 150 feet), passenger vessels (seating from 26 to 500 guests), amphibious boats. We also offer specialized options like jet car boats, available in various car looks from 5-seat to 11-seat models. Catering to individual needs, we readily accept custom and OEM orders based on specific requirements.
From the outset, Shine Boating has embraced a distinctive R&D approach, integrating its local expertise with design insights from masterpieces around the globe. This collaborative model ensures our products meet global standards, incorporating advanced technologies and innovative designs. Our commitment to innovation is underscored by our portfolio of dozens of patents. We leverage advanced boat manufacturing techniques and combine them with our parent company’s leading domestic mold processing capabilities, and utilize cutting-edge materials and processes. This dedication ensures the exceptional safety, performance, and aesthetic appeal of our products, all aimed at delivering the perfect boating experience for our customers.
Our manufacturing excellence is further bolstered by the use of proprietary materials, allowing us to offer a diverse range of high-quality products at competitive prices, ensuring our customers receive the best value. This focus on premium products and services has established a strong distribution network, extending our reach to key markets such as United States, France, South Korea, Thailand, Japan, Australia, New Zealand, Mexico and Caribbean countries and regions, as well as successfully competing in some developed regions from Europe and North America.
1. Exquisite boat appearance and smooth lines. Introduced New Zealand advanced yacht manufacturing technology.
2. High-quality fiberglass materials with service life of 20 years under normal use and maintenance. Rely on the parent company's domestic leading yacht mold precision processing technology to achieve the best safety of the product performance and exquisite manufacturing.
3. Competitive price. Reliable and stable raw material supply to control the cost.
4. Strict quality control system. Every ship will be comprehensively inspected before shipping.
5. Perfect after-sales system. We offer 1 years warranty based on different boat model.
6. One-stop service. We complete supporting facilities, according to customer requirements to provide trailer, engine, and other marine parts etc.
7. Rich exporting experience with more than 10 years of international business. Keep good relationships with customers.
